Product Description:

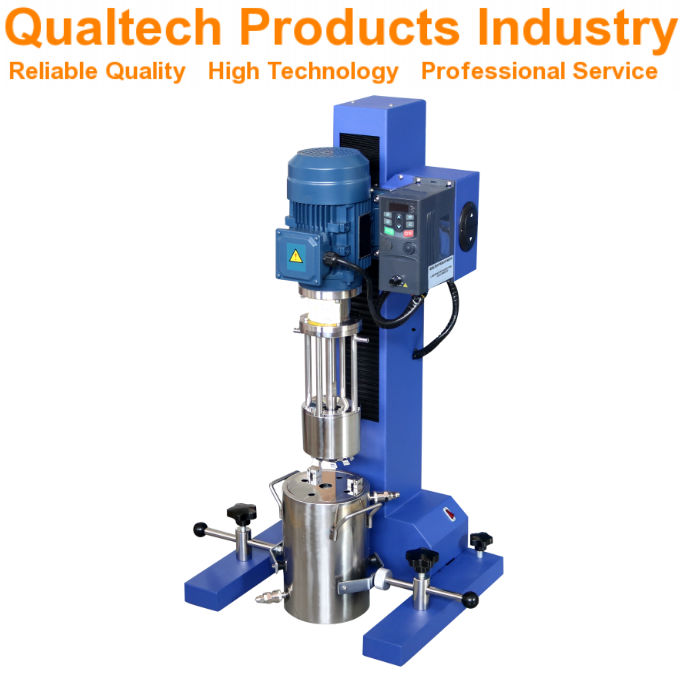

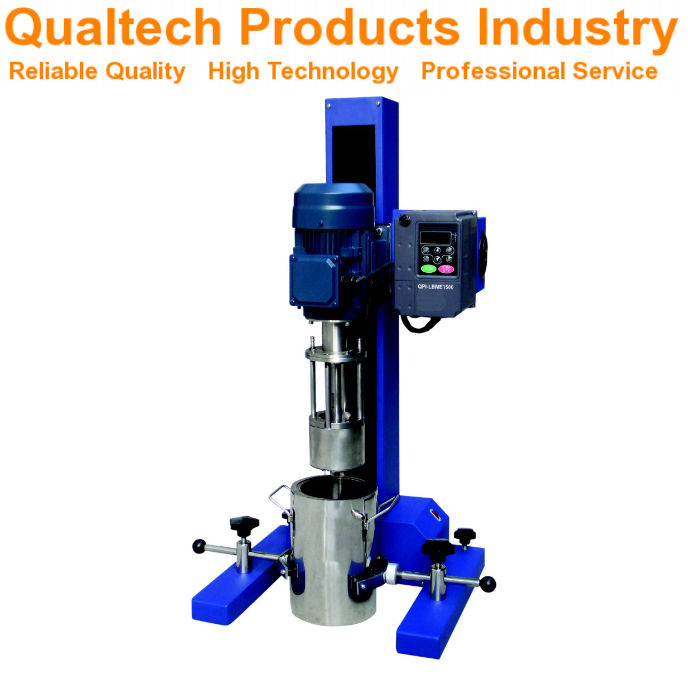

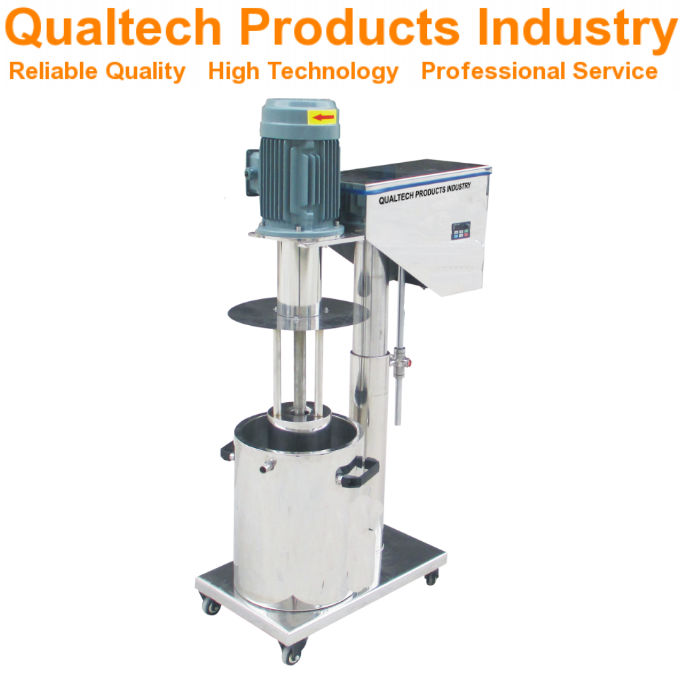

Qualtech Products Industry Laboratory Basket Mill is an advanced Laboratory Ball Mill to instantly grind, mill, blend and mix one or more phases or one or more ingredients into one continuous and homogeneous phase at the touch of a button. The large Digital Display presents the continuously adjustable Milling and Mixing Speed and a wide range of Motor Performance Levels with optional Explosion-Proof Technology deliver a professional application for research and quality management. This professional Laboratory Ball Mill reduces the size of particles in samples including paint, coatings, ink, pastes, creams, oil based paint, pigments and related materials with high efficiency and high performance.

A Laboratory Ball Mill is a combinaton of Grinding Technology, Dispersing Technology and Mixing Technology performing the combined action of Milling, Dispersion and Mixing. The Ball Mill Basket is a cylindrical sieve which is partially filled with specified Grinding Media which is available in a selection of different sizes and made of different materials suitable for different specified applications in the Ceramics Industry, the Mineral Industry, the Paint Industry, the Pyrotechnic Industry and many more. The Grinding Media is also called Grinding Balls and Grinding Pearls and is usually made of Ceramics, Plastic, Rubber, Chrome Steel. The most widely know Grinding Media are Zirconia Beads.

This professional Laboratory Basket Mill is designed and engineered offering the newest microchip technology combined with a large Digital Display, comfortable Softtouch Buttons, a continuously adjustable Milling Speed, a Mixing Speed from 0 RPM up to 3000 RPM, integrated Manual Lift or integrated Hydraulic Lift or integrated Electric Lift, user-friendly Basket Swap Technology, a reliable high-performance motor with low noise emission, an advanced Basket Design, an included Double-Jacket Mixing Vessel made of SS304 or SS316, an integrated Mixing Vessel Clamp Holder, optional Explosion Proof Configuration, an Easy Cleaning Technology, a highly efficient Mixing Performance, integrated Safety Features, user-friendly application, user-friendly sample handling, high accuracy and high precision, an ergonomic design, reliable performance, longevity and much more.

This reliable Laboratory Ball Mill is engineered for a wide range of applications and integrates an advanced milling technology to ensure precision performance with a high milling efficiency and professional milling results suitable for a wide range of applications at the touch of a button.

This professional Laboratory Pearl Mill is available in different configurations including Electric Lift Systems, Hydraulic Lift Systems and Manual Lift Systems combined with a wide range of different Milling Baskets and Grinding Media engineered for research and quality management.

The integrated large Digital Display of this advanced Laboratory Basket Mill presents the precise Mixing Speed to ensure a reliable and highly efficient mixing performance.

This professional Laboratory Basket Mill is designed and engineered in accordance with international test standards.

Laboratory Basket Mill - Features:

  • Newest Microchip Technology
  • Large Digital Display
  • Comfortable Softtouch Buttons
  • Continuously adjustable Mixing Speed
  • Speed Range from 0 RPM up to 3000 RPM
  • Reliable High-Performance Motor with Low Noise Emission
  • Highly efficient Mixing Performance
  • Advanced Milling Basket Design
  • User-friendly Milling Basket Swap Technology
  • User-friendly Application
  • User-friendly Sample Handling
  • User-friendly Easy Cleaning Technology
  • Included Double Jacket Mixing Vessel made of SS304
  • Explosion Proof Configuration optional available
  • Made of High-Quality Materials
  • Electric Lift System available
  • Hydraulic Lift System available
  • Manual Lift System available
  • High Accuracy & High Precision
  • Ergonomic Design
  • Reliable Performance & Longevity
  • Engineered in accordance with international Test Standards

Laboratory Wet Grinding Mill - Features:

ModelQPI-LBME Series
Electric Lift
QPI-LBMH Series
Hydraulic Lift
QPI-LBMM Series
Manual Lift
Lift SystemElectric Lift SystemHydraulic Lift SystemManual Lift System
Speed0 RPM - 2880 RPM0 RPM - 2880 RPM0 RPM - 2880 RPM
Programming & ControlElectronic Controls with LCD displayElectronic Controls with LCD displayElectronic Controls with LCD display
Voltage110VAC 60Hz / 220VAC 50Hz110VAC 60Hz / 220VAC 50Hz110VAC 60Hz / 220VAC 50Hz
Power550W - 2200W550W - 2200W550W - 2200W
Advanced BasketWide range of basket designsWide range of basket designsWide range of basket designs
Grinding MediaWide range of available Grinding MediaWide range of available Grinding MediaWide range of available Grinding Media
Power ConfigurationsSelect the best Wet Grinding Mill Configuration from 550 Watts - 2200 WattsSelect the best Wet Grinding Mill Configuration from 550 Watts - 2200 WattsSelect the best Wet Grinding Mill Configuration from 550 Watts - 2200 Watts
High Performance & High EfficiencyReliable Precision Performance & High EfficiencyReliable Precision Performance & High EfficiencyReliable Precision Performance & High Efficiency

Laboratory Bead Mill - Standard Configurations:

ModelQPI-LBMM550QPI-LBMM750QPI-LBME1100QPI-LBME1500QPI-LBME2200QPI-LBME750
Power550 Watts750 Watts1100 Watts1500 Watts2200 Watts750 Watts
Lift SystemManual LiftManual LiftElectric LiftElectric LiftElectric LiftElectric Lift
Speed0 RPM - 2880 RPM
Continuous Speed Control
0 RPM - 2880 RPM
Continuous Speed Control
0 RPM - 2880 RPM
Continuous Speed Control
0 RPM - 2880 RPM
Continuous Speed Control
0 RPM - 2880 RPM
Continuous Speed Control
0 RPM - 3000 RPM
Continuous Speed Control
Grinding Media1.8 - 2.5 mm1.8 - 2.5 mm1.8 - 2.5 mm1.8 - 2.5 mm1.8 - 2.5 mm1.4 - 1.6 mm
MaterialSS304SS304SS304SS304SS304SS304
Stainless Steel Mixing Vessel1.5 L Double Jacket Mixing Vessel (included)3 L Double Jacket Mixing Vessel5 L Double Jacket Mixing Vessel10 L Double Jacket Mixing Vessel20 L Double Jacket Mixing Vessel3 L Double Jacket Mixing Vessel
Voltage110VAC 60Hz / 220VAC 50Hz110VAC 60Hz / 220VAC 50Hz110VAC 60Hz / 220VAC 50Hz110VAC 60Hz / 220VAC 50Hz110VAC 60Hz / 220VAC 50Hz110VAC 60Hz / 220VAC 50Hz
Custom engineered configurations available. Please ask our specialists for more details.

Laboratory Basket Pearl Mill – Included items:

  • Laboratory Basket Pearl Mill
  • Advanced Milling Basket 1PC
  • Standard Grinding Media 1PKG
  • Double Jacket Mixing Vessel SS304 1PC
  • Mixing Vessel Clamp Holder
  • Accessories
  • Quality Certificate
  • Carefully Calibrated
  • Calibration Certificate
  • User manual
  • Extended Warranty
