Rotary Abrasion Tester
Single Platform Abrasion Tester
Single Platform Rotary Abrasion Tester
Single Turntable Rotary Abrasion Tester
Large Color Touchreen Display
ASTM DIN EN ISO AS/NZ ENV
FORD GM SAE EN

Product Description:

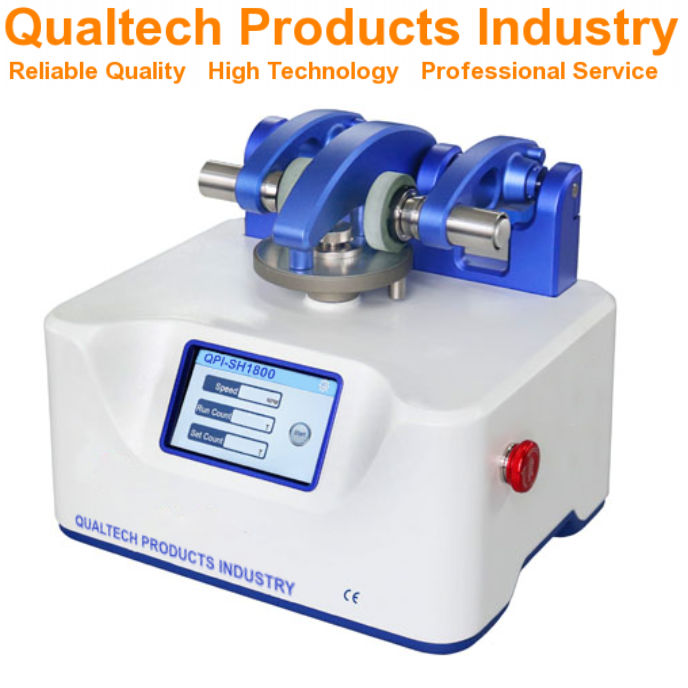

Qualtech Products Industry Single Platform Abrasion Tester is a precision Rotary Abrasion Tester to perform automatic Accelerated Wear Tests on samples and sample surfaces by abrasion to instantly determine the Resistance to Dry Abrasion at the touch of a button. The integrated large Color Touchscreen Display offers an intuitive and user-friendly Abrasion Test Experience.

This professional Rotary Platform Abrasion Tester is suitable for a wide range of samples, sample surfaces, surface coatings and protective surface coatings including solid samples, coated surfaces, protective lacquers, protective surface coatings, electroplated surfaces, plastic-coated surfaces, textiles, leather, rubber, linoleum, laminated floor tiles, wood panels, ceramic tiles, metals and many more.

The Test Method for Abrasion Resistance is performed by mounting a sample onto the Sample Platform. The Sample Platform is a turntable which rotates the sample at a specified speed. During the rotation the sample is in direct contact with two specified Abrasive Wheels with a specified Test Load to determine the Resistance to Wear of the sample. The Abrasive Wear Action is achieved with the two specified Abrasive Wheels rotating in opposite directions set and kept in motion by a the rotating Sample Platform. The Abrading Wheels travel on the sample surface following a horizontal axis displaced tangentially from the axis of the test material which results in a sliding action. An exclusive feature of this Test Method for Abrasion Resistance is the “X” Pattern of Abrasion established by the rub-wear action of the Abrasive Wheels.
The Rotary Abrasion Wear Pattern formed on the sample surface is that of two intersecting areas or a slightly curved herringbone configuration from the outside to the center and from the center to the outside. During the Abrasion Test the sample surface is subjected to wear and abrasion and the material surface is abraded at all angles of grain or weave.

This professional Automatic Single Platform Rotary Abrasion Tester is designed and engineered offering the newest microchip technology combined with a large Color Touchscreen Display, comfortable Sofftouch Buttons, an advanced Sample Turntable, Continuous Speed Control, advanced Constant Speed Technology, automatic Rotary Abrasion Test Programs, a wide range of available standardized and precision-engineered Abrasion Wheels, a wide range of standardized and carefully calibrated precision-engineered Test Loads, optional custom engineered Test Loads, an easy Sample Mount System, easy Abrasion Wheel Mount & Swap System, easy Test Load Mount & Swap System, advanced Platform Constant Speed Technology, Calibration Options, optional Vacuum System, user-friendly Menu Navigation, user-friendly Application, user-friendly Sample Handling, High Accuracy and High Precision, an ergonomic Design, reliable Performance and much more.

The large Color LCD Display presents the test data and the test details for an advanced and Automatic Sample Abrasion Resistance Test Analysis including the Sample Platform Speed, the number of completed Abrasion Cycles, the number of preset Target Abrasion Cycles and much more.

This professional Single Turntable Abrasion Tester is designed and engineered in accordance with international test standards including:

• ASTM C501 (Standard Test Method for Relative Resistance to Wear of Unglazed Ceramic Tile by the Taber Abraser)
• ASTM C1353 (Standard Test Method for Abrasion Resistance of Dimension Stone Subjected to Foot Traffic Using a Rotary Platform Abraser)
• ASTM D1044 (Standard Test Method for Resistance of Transparent Plastics to Surface Abrasion)
• ASTM D3884 (Standard Guide for Abrasion Resistance of Textile Fabrics (Rotary Platform, Double-Head Method))
• ASTM D3389 (Standard Test Method for Coated Fabrics Abrasion Resistance (Rotary Platform Abrader))
• ASTM D4060 (Standard Test Method for Abrasion Resistance of Organic Coatings by the Taber Abraser)
• ASTM D5034 (Standard Test Method for Breaking Strength and Elongation of Textile Fabrics (Grab Test))
• ASTM D5035 (Standard Test Method for Breaking Force and Elongation of Textile Fabrics (Strip Method))
• ASTM D7255 (Standard Test Method for Abrasion Resistance of Leather (Rotary Platform, Double-Head Method))
• ASTM D6037 (Standard Test Methods for Dry Abrasion Mar Resistance of High Gloss Coatings)
• ASTM D-7255 (Standard Test Method for Abrasion Resistance of Leather (Rotary Platform, Double-Head Method))
• ASTM F362 (Standard Test Method for Determining the Erasability of Inked Ribbons)
• ASTM F510 (Standard Test Method for Resistance to Abrasion of Resilient Floor Coverings Using an Abrader with a Grit Feed Method)
• ASTM F1478 (Standard Test Method for Determination of Abrasion Resistance of Images Produced from Copiers and Printers (Taber Method))
• ASTM F1978 (Standard Test Method for Measuring Abrasion Resistance of Metallic Thermal Spray Coatings by Using the Taber Abraser)
• DIN 52347 (Testing Of Glass And Plastics; Abrasion Test; Method Using Abrasion Wheels And Measurement Of Scattered Light)
• DIN 53109 (Testing Of Paper And Board – Determination Of Abrasion By The Abrasion Wheel Method)
• DIN 53754 (Testing Of Plastics; Determination Of Abrasion, Abrasive Disk Method)
• DIN 53799 (Decorative Laminated Sheets On Basis Of Aminoplastic Resins; Test Method)
• DIN 68861-2 (Furniture Surfaces – Part 2: Behavior At Abrasion)
• ISO 10074 (Anodizing of aluminium and its alloys — Specification for hard anodic oxidation coatings on aluminium and its alloys)
• ISO 14656 (Epoxy powder and sealing material for the coating of steel for the reinforcement of concrete)
• ISO 24338 (Laminate floor coverings — Determination of abrasion resistance)
• ISO 3537 (Road vehicles — Safety glazing materials — Mechanical tests)
• ISO 4586-2 (High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins (Usually called Laminates) — Part 2: Determination of properties)
• ISO 5470-1 Rubber- or plastics-coated fabrics — Determination of abrasion resistance — Part 1: Taber abrader
• ISO 7784-1 (Paints and varnishes — Determination of resistance to abrasion — Part 1: Method with abrasive-paper covered wheels and rotating test specimen)
• ISO 7784-2 (Paints and varnishes — Determination of resistance to abrasion — Part 2: Method with abrasive rubber wheels and rotating test specimen)
• ISO 9352 (Plastics — Determination of resistance to wear by abrasive wheels)
• ANSI INCITS 322-2008 (Information Technology – Card Durability Test Methods)
• AS/NZS 1580.403.2:1994 (Paints and related materials – Methods of test – – Abrasion resistance – Taber abraser))
• AS/NZS 4266.2 (Reconstituted wood-based panels – Methods of test – Dimensions, squareness, flatness and edge straightness of whole panel)
• EN 13329 (Laminate floor coverings. Specifications, requirements and test methods)
• EN 13523-16 (Coil coated metals. Test methods. Resistance to abrasion)
• EN 14323 (Wood-based panels. Melamine faced boards for interior uses. Test methods)
• EN 14327 (Leather. Physical and mechanical tests. Determination of abrasion resistance of automotive leather)
• EN 14354 (Wood-based panels. Wood veneer floor covering)
• EN 14431 (Vitreous and porcelain enamels. Characteristics of the enamel coatings applied to steel panels intended for architecture)
• EN 14688 (Sanitary appliances. Wash basins. Functional requirements and test methods)
• EN 14864 (Vitreous and porcelain enamels. Enamel coatings applied to steel for writing surfaces. Specification)
• EN 1504-2 (Products and systems for the protection and repair of concrete structures. Definitions, requirements, quality control and evaluation of conformity. Surface protection systems for concrete)
• EN 438-2 (High-pressure decorative laminates (HPL). Sheets based on thermosetting resins (usually called laminates). Determination of properties)
• EN 660-2 (Resilient floor coverings. Determination of wear resistance. Frick-Taber test)
• DD ENV 13696 (Wood and parquet flooring. Determination of elasticity and resistance to wear)
• FORD BN108-02 (Ford Laboratory Test Method – Resistance To Abrasion – Taber Abraser)
• HNEMA LD 3 (High-Pressure Decorative Laminates (HPDL))
• NF Q 03-055 (Paper And Board Tests – Determination Of Abrasion Resistance Of Paper And Board (by The Taber Method))
• SAE J 1530 (Test Method for Determining Resistance to Fiber Loss, Resistance to Abrasion and Bearding of Automotive Carpet Material)
• SAE J1847 (Abrasion Resistance Testing-Vehicle Exterior Graphics and Pin Striping)
• SAE J365 (Method of Testing Resistance to Scuffing of Trim Materials)
• SAE J948 (Test Method for Determining Resistance to Abrasion of Automotive Bodycloth, Vinyl, and Leather, and the Snagging of Automotive Bodycloth)
• TAPPI T476 (Abrasion loss of paper and paperboard (Taber-type method), Test Method TAPPI/ANSI T 476 om-11)
• UNE 135203-1:2010 (Road Signalisation Equipment – Horizontal Signalisation – Materials – Laboratory Abrasion Tests – Part 1: Determination Of The Abrasion Resistance By Taber Method)
• UNE48250 (Paints And Varnishes – Abrasion Resistance – Taber Method)
• UNE56842 (Kitchen Furniture – Tests For Surfacing Materials)
• UNE 56843 (Kitchen Furniture – Physical Tests)
• UNE56868 (Bathroom Furniture – Physical Test Methods)
• UNE 57095 (Paper And Cardboard – Determination Of Abrasion Strength (Taber Method))
• ECCA T16
• GM 9515P
• SIS SS923509
