Gloss Meter

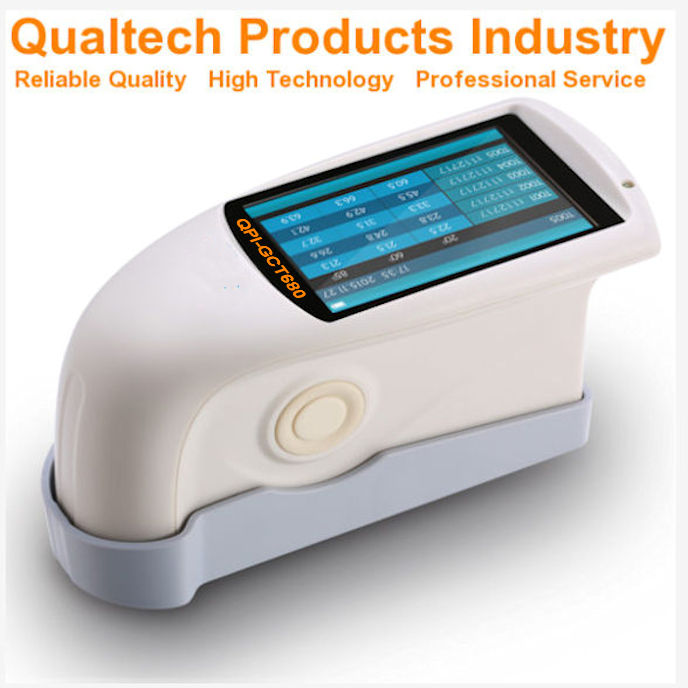

Tri-Angle Gloss Meter with Touchscreen
Single-Angle Gloss Meter with Touchscreen
Precision Gloss Meter with Color Touchscreen Interface
ASTM C584 ASTM D523 ASTM D2457
DIN EN ISO 2813 EN ISO 7668 DIN 67530
BS 3900-D5 MFT 30064 AS 1580
BS EN ISO 2813:2000
Product Description:
Qualtech Products Industry Gloss Meter with Color Touchscreen is an advanced precision Gloss Meter ideal for single-angle and tri-angle gloss measurements at the touch of a button.
This advanced Gloss Meter combines highest precision with a user-friendly and large color touchscreen interface, a seamless PC-connectivity, a professional PC-software designed for research and quality management and much more.
Gloss describes the visual appearance of a surface and how it reflects light in a specular direction. Gloss is an optical property and is usually measured with incident light at an angle of 20°, 60° and 85°.
This advanced Gloss Meter is designed and engineered offering the newest microchip technology for high accuracy and high precision combined with a large color touchscreen interface, user-friendly menu navigation, maintenance-free LED light-sources, precision photosensors, a one-button test mode for fast and efficient sample measurements, large integrated memory, auto-calibration to ensure high accuracy and high precision, seamless PC-connectivity, advanced PC-software designed for research and quality management, rechargeable Li-Ion battery, reliable performance and ergonomic design.
This professional and advanced Gloss Meter with Color Touchscreen Interface is designed and engineered in accordance with international test standards including:
- ASTM C584 (Standard Test Method for Specular Gloss of Glazed Ceramic Whitewares and Related Products)
- ASTM D523 (Standard Test Method for Specular Gloss)
- ASTM D2457 (Standard Test Method for Specular Gloss of Plastic Films and Solid Plastics)
- DIN EN ISO 2813 (Paints and varnishes — Determination of gloss value at 20 degrees, 60 degrees and 85 degrees)
- EN ISO 7668 (Anodizing of aluminium and its alloys — Measurement of specular reflectance and specular gloss of anodic oxidation coatings at angles of 20 degrees, 45 degrees, 60 degrees or 85 degrees)
- BS 3900-D5 (Methods of test for paints. Optical tests on paint films. Measurement of specular gloss of non-metallic paint films at 20°, 60° and 85°)
- BS EN ISO 2813:2000 (Paints and varnishes. Measurement of specular gloss of non-metallic paint films at 20°, 60° and 85°)
- DIN 67530
- MFT 30064
- AS 1580
Advanced Gloss Meter with Color Touchscreen – Features:
- Newest Microchip Technology
- Advanced Gloss Meter with large Color Touchscreen Interface
- User-friendly Menu Navigation
- Large integrated Memory Chip
- Auto Calibration
- Color Touchscreen with Backlight comfortable to read under different light conditions
- Small & light – Easy & convenient to use in the field & laboratory
- Measurement of Gloss at the touch of a single button
- Fast & Efficient Measurement
- Newest Light Source Technology – No replacement or servicing of the light source required
- Rechargeable Li-Ion battery
- Extensive battery life
- High Accuracy & High Repeatability
- Ergonomic & user-friendly design
- Lightweight & comfortable to carry with you
- Engineered in accordance with international test standards
Newest Gloss Meter with Color Touchscreen – Specifications:
Model | QPI-GCT280 | QPI-GCT580 |
---|---|---|
Advanced Gloss Measurement | Newest Microchip Technology | Newest Microchip Technology |
Display | Large Color Touchscreen Interface | Large Color Touchscreen Interface |
Menu | User-friendly Menu Navigation | User-friendly Menu Navigation |
Measurement Angle | 60° | 20° 60° 85° |
Measurement Range | 60°: 0 - 1000 GU | 20°: 0 -1000 GU 60°: 0 - 1000 GU 85°: 0 - 160 GU |
Accuracy | ±1.5, 1.5% | ±1.5, 1.5% |
Calibration | Auto Calibration | Auto Calibration |
Measurement Time | 0.5 sec | 0.5 sec |
Large Integrated Memory | Up to 1000 sample measurements | Up to 1000 sample measurements |
Rechargeable-Li-Ion Battery | Up to 8 hours continuous sample measurements Up to 10.000 sample measurements | Up to 8 hours continuous sample measurements Up to 10.000 sample measurements |
Seamless PC-Connectivity & PC-Software | ||
High Accuracy & High Precision | ||
High Repeatability | ||
Reliable Performance & Ergonomic Design |

Advanced Gloss Meter with Color Touchscreen – Gloss Meter Touchscreen Display:

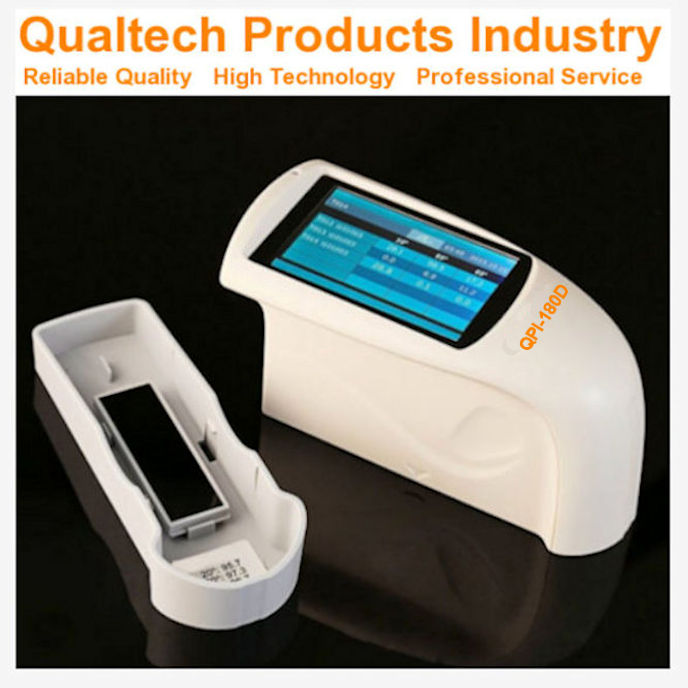

Gloss Meter with Color Touchscreen – Convenient Carrying Box:

Get information now on products, pricing, technical support and professional services.
One of our specialists will reply to your enquiry shortly. Alternatively contact us via the company details in the USA, in Australia or in the UK.
