Product Description:

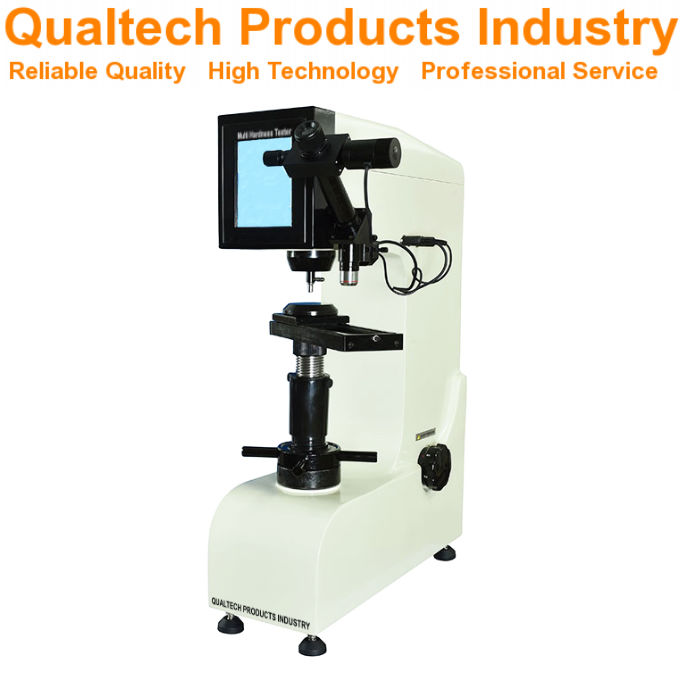

Qualtech Products Industry Hardness Tester is a Combination Multi-Range Indentation Hardness Tester with Touchscreen to instantly measure the hardness of samples in accordance with the Brinell Hardness Scale, the Rockwell Hardness Scale and the Vicker Hardness Scale at the touch of a button.
This advanced Multi-Range Hardness Test Machine is engineered to measure the hardness of a wide range of softer metals and harder metals including Aluminum, Copper, Lead, Steel, Iron, Non-Ferrous Metals and many more.
This professional C0mbination Hardness Test Machine combines three Hardness Test Scales in one advanced Hardness Test Device:
- Brinell Hardness Scale
- Rockwell Hardness Scale
- Vicker Hardness Scale
The Hardness Test characterizes the hardness of samples in accordance with the corresponding Hardness Scale by surface indentation. To perform a Hardness Test a sample is mounted on the sample holder and a specified Indenter penetrates the sample surface with a specified Test Load. The Indentation Depth is measured to characterize the hardness of the sample.
This professional Combination Hardness Tester is designed and engineered offering the newest microchip technology combined with a large Color Touchscreen Display presenting the test parameters, an integrated Memory, an advanced simultaneous Optical Test and Mechanical Test, an integrated adjustable Light Source, user-friendly Menu Navigation, user-friendly application, user-friendly sample handling, seven different Automatic Test Load Programs, automatic Brinell Hardness Test, automatic Rockwell Hardness Test, automatic Vicker Hardness Test, Automatic Test Method Selection, Automatic Minimum Hardness Calculation, Automatic Maximum Hardness Calculation, Automatic Average Means Hardness Calculation, wide range of available precision-engineered Indenters, high accuracy and high precision, Automatic Calibration, included Calibration Tiles, Direct Printing, a seamless PC-Connectivity and PC Software, an ergonomic design, reliable performance, longevity and much more.
The large Color Touchscreen Display presents a wide range of test data and test details for an advanced and automatic sample hardness analysis including the Test Method, the Test Load, the Indentation Depth, the Hardness, the Test Force Retention Time, the current Hardness Measurement Range, the Sample Measurement Times, the Sample Analysis, the Sample Test Result and much more.
This professional Combination Multi-Range Hardness Tester is designed and engineered in accordance with international test standards including:
- ASTM E10 (Standard Test Method for Brinell Hardness of Metallic Material)
- ISO 6506 (Metallic materials — Brinell hardness test — Part 1: Test method)
- ASTM E18 (Standard Test Methods for Rockwell Hardness of Metallic Materials)
- ASTM E140 (Standard Hardness Conversion Tables for Metals Relationship Among Brinell Hardness, Vickers Hardness, Rockwell Hardness, Superficial Hardness, Knoop Hardness, Scleroscope Hardness, and Leeb Hardness)
- ASTM D785 (Standard Test Method for Rockwell Hardness of Plastics and Electrical Insulating Materials)
- ISO 3738 (Hardmetals — Rockwell hardness test (scale A))
- ISO 6508 (Metallic materials — Rockwell hardness test)
- ASTM E384 (Standard Test Method for Knoop and Vickers Hardness of Materials)
- ASTM E92 (ASTM E92-82(2003)e2 Standard Test Method for Vickers Hardness of Metallic Materials (Withdrawn 2010 & Replaced with E384))
- ISO 6507 (Metallic materials — Vickers hardness test — Part 1: Test method)
Multi-Range Hardness Tester - Features:
- Newest Microchip Technology
- Large Color Touchscreen Display
- Extensive Sample Test Monitoring with on screen test parameters and the sample test analysis
- Combination of three Hardness Test Methods
- Instant Brinell Hardness Test
- Instant Rockwell Hardness Test
- Instant Vicker Hardness Test
- Automatic Test Method Selection
- Automatic Test Load Selection
- Automatic Indentation Duration Selection
- Automatic Sample Test Analysis
- Detailed Sample Test Monitoring
- Advanced simultaneous Optical Test & Mechanical Test
- Integrated adjustable Light Source
- Seven integrated different Automatic Test Load Programs
- Wide range of available precision-engineered Indenters
- Seven different Test Load Programs for softer metals & harder metals
- Precision engineered Indenters
- User-friendly Menu Navigation
- User-friendly Application
- User-friendly Sample Handling
- Suitable for a wide range of materials including softer metals & harder metals
- Automatic Calibration
- Included Calibration Tiles
- Direct Printing
- Seamless PC-Connectivity & PC Software
- High Accuracy & High Precision
- Ergonomic Design
- Reliable Performance & Longevity
- Engineered in accordance with international test standards including ASTM E10, ASTM E18, ASTM E92, ASTM E384, ASTM E140, ASTM D785, ISO 3738, ISO 6506, ISO 6507, ISO 6508
Combination Hardness Tester - Specifications:
Model | QPI-MRHTT6800 |
---|---|
Newest Microchip Technology | Yes |
Large Touchscreen Display | Yes |
Instant Multi-Range Hardness Measurement | Brinell Hardness Scale Rockwell Hardness Scale Vicker Hardness Scale |
Brinell Measuring Range | HBW 2.5-31.25, HBW 5-62.5, HBW 2.5-62.5, HBW 2.5-187.5 31.25 kgf, 62.5 kgf, 187.5 kgf |
Rockwell Measuring Range | HRA, HRB, HRC 60 kgf, 100 kgf, 150 kgf |
Vicker Measuring Range | HV30, HV100 30 kgf, 100 kgf |
Hardness Test Duration | 2 sec - 60 sec |
Automatic Test Method Selection | Yes |
Automatic Test Load Selection | Yes |
Automatic Test Duration Selection | Yes |
Wide range of included Indenters | Yes |
Optional Available Indenters | Yes, Custom engineered |
Display Resolution | 0.625 μm |
Measuring Range | 8 HBW - 650 HBW |
Data Conversion | Automatic Brinell Hardness Calculation |
Test Loads | 62.5 kgf, 100 kgf, 125 kgf, 187.5 kgf, 250 kgf, 500 kgf, 750kgf, 1000 kgf, 1500 kgf, 3000 kgf |
Maximum Sample Height | 180 mm |
Integrated Optical System Magnification | Up to 20X |
User-friendly Menu Navigation | Yes |
User-friendly Application | Yes |
User-friendly Sample Handling | Yes |
Instant Hardness Measurements in the field | Yes |
Automatic Calibration | Yes |
Included Calibration Tile | Yes |
High Accuracy & High Precision | Yes |
Ergonomic Design | Yes |
Reliable Performance | Yes |
Voltage | 110V 60Hz & 220V 50Hz |
Engineered in accordance with international test standards including ASTM E10, ASTM E18, ASTM E92, ASTM E384, ASTM E140, ASTM D785, ISO 3738, ISO 6506, ISO 6507, ISO 6508 |
Combination Hardness Tester – Included items:
- Automatic Combination Mult-Range Hardness Tester with large Color Touchscreen
- Accessories
- Quality Certificate
- Carefully Calibrated
- Calibration Certificate
- User manual
- Extended Warranty
- Lifetime Support
