Product Description:

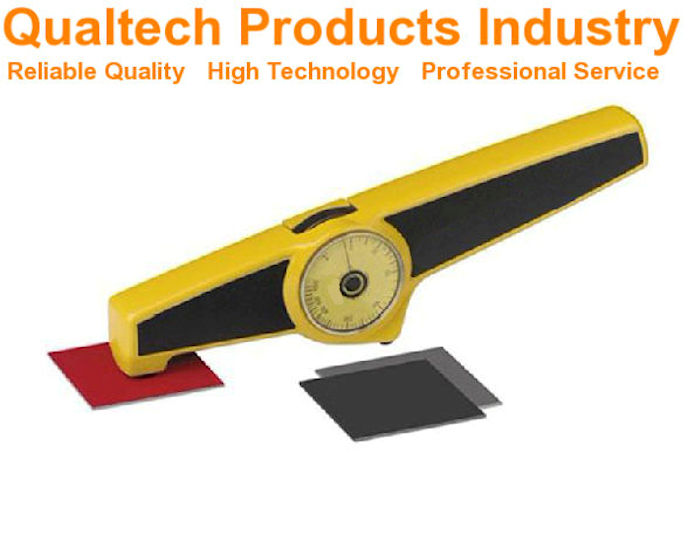

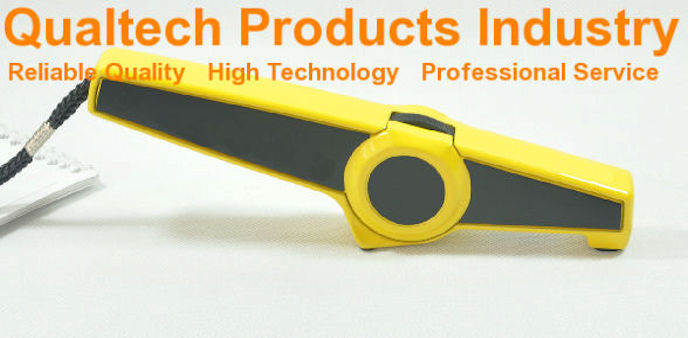

Qualtech Products Industry Banana Coating Thickness Gauge is a professional Mechanical Coating Thickness Gauge to measure the film thickness of coatings applied on substrates and surfaces including steel panels, plastic panels, glass panels and related materials.
This Banana Paint Mil Gauge is ideal for Coating Thickness Measurements under challenging conditions including under water measurements.
This professional Mechanical Coating Thickness Gauge measures the dry film thickness of coatings in the range from 0 – 1000 µm and is available in different models to perform a manual coating thickness test and an automatic coating thickness test.
This reliable Banana Coating Thickness Gauges offers precision magnet supported coating thickness measurements combined with advanced spring mechanics, a large comfortable to read analogue display, high accuracy, high precision, an ergonomic design, reliable performance and longevity.
This professional Mechanical Banana Coating Thickness Gauge is designed and engineered in accordance with international test standards including:
- ASTM B499 (Standard Test Method for Measurement of Coating Thicknesses by the Magnetic Method: Nonmagnetic Coatings on Magnetic Basis Metals)
- ASTM G12 (Standard Test Method for Nondestructive Measurement of Film Thickness of Pipeline Coatings on Steel (Withdrawn 2013))
- BS 5411-11 (Methods of test for metallic and related coatings. Measurement of coating thickness of non magnetic metallic and vitreous or porcelain enamelcoatings on magnetic basis metals Magnetic method)
- BS 3900-C5 (Paints and varnishes. Determination of film thickness)
- ISO 2178 (Non-magnetic coatings on magnetic substrates — Measurement of coating thickness — Magnetic method)
- ISO 2808-6A (Paints and varnishes — Determination of film thickness)
- ISO 2808-7A (Paints and varnishes — Determination of film thickness)
- DIN 50981 (Measurement of coating thickness; magnetic methods for measurement of thickness of non-ferromagnetic coatings on ferromagnetic material)
- NF T 30-124 (Paints and varnishes. Measurement of dry film thickness. Non-destructive method with a magnetic flux. - Peintures et vernis)
- AS 2331.1.3 (Methods of test for metallic and related coatings - Local thickness tests - Magnetic method)
- AS 3894.3-A(PreviewSite testing of protective coatings Determination of dry film thickness)
- AS/NZS 1580.108.1 (Paints and related materials - Methods of test - Determination of dry film thickness on metallic substrates - Non-destructive methods)
Banana Paint Inspection Gauge - Features:
- New Updated Design
- High Precision Magnetic & Spring Mechanics
- Large Analog Display comfortable to read
- Ideal for Coating Thickness Measurements under challenging conditions including under water measurements
- User-friendly Application
- High Accuracy & High Precision
- Ergonomic Design
- Reliable Performance & Longevity
- Engineered in accordance with international test standards including ASTM B499, ASTM G12, DIN 50981, ISO 2178, ISO 2808-6A, ISO 2808-7A, BS 5411-11, BS 3900-C5-6A, NF T 30-124, AS 2331.1.3 AS 3894.3-A, AS/NZS 1580.108.1
Banana Coating Thickness Gauge – Specifications:
| Model | QPI-BCT1800 | QPI-BCT2800 | QPI-BCT3800 | QPI-BCT4800 | QPI-BCT5800 | QPI-BCT6800 | QPI-BCT7800 | QPI-BCT8800 |
|---|---|---|---|---|---|---|---|---|
| Test Mode | Manual | Manual | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic |
| Measuring Range | 0 - 100 µm | 0 - 1000 µm | 0 - 100 µm | 0 - 1000 µm | 0.2 - 3 mm | 0.5 - 5 mm | 2.5 - 10 mm | 0 - 50 µm |
| Accuracy | ±1 µm / 5% | ±5 µm / 5% | ±1 µm / 5% | ±5 µm / 5% | 5% | 5% | 5% | ±2 µm / 8% |
| Min Sample Size | Ø 20 mm | Ø 30 mm | Ø 20 mm | Ø 30 mm | Ø 30 mm | Ø 50 mm | Ø 50 mm | Ø 20 mm |
| Min Sample Thickness | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 1 mm | 2 mm | 2 mm | 0.5 mm |
| Min Curve of Sample | 5 mm convex / 25 mm concave | 8 mm convex / 25 mm concave | 5 mm convex / 25 mm concave | 8 mm convex / 25 mm concave | 15 mm convex / 25 mm concave | 15 mm convex / 25 mm concave | 15 mm convex / 25 mm concave | 10 mm convex / 25 mm concave |
| Application | Electroplating | Paint Coating on Steel Panel | Electroplating & Paint Coating on Steel Panel | Paint Coating on Steel Panel | Enamel, Plastic, Rubber Coating on Steel Panel | Enamel, Plastic, Rubber Coating on Steel Panel | Enamel, Plastic, Rubber Coating on Steel Panel | Electroplated Nickel on Steel Panel |
| High Accuracy & High Precision | ||||||||
| Lightweight & User-friendly on the go | ||||||||
| Reliable Performance & Ergonomic Design | ||||||||
Banana Mechanical Thickness Gauge – Included items:
- Professional Banana Coating Thickness Gauge
- Precision Calibration Standards
- Carrying Box
- Carefully Calibrated
- Calibration Certificate
- Quality Certificate
- Extended Warranty
- Lifetime Support
- User Manual
