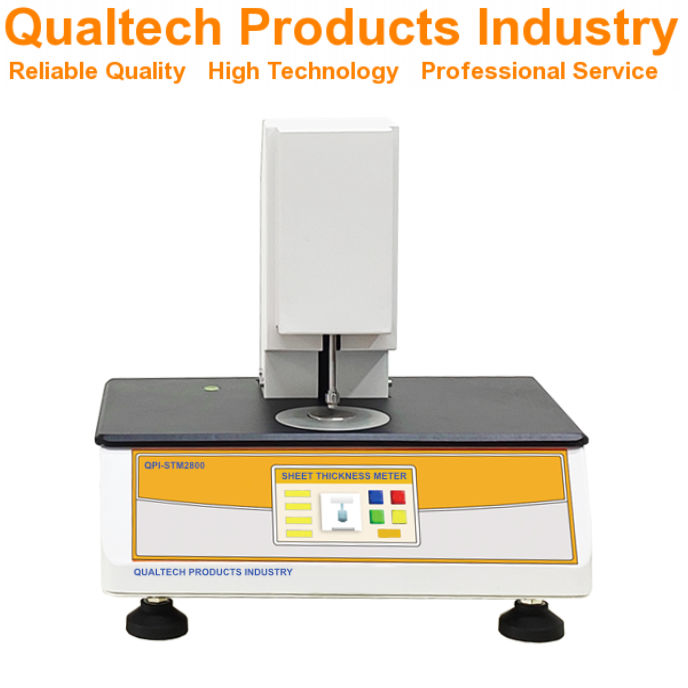

Product Description:
Qualtech Products Industry Sheet Thickness Meter is a professional Film Thickness Gauge to instantly measure the thickness of sheet samples including aluminum alloy, metal panels, paper, cardboard, PVC sheets, PVC panels, fabrics, textiles, membranes, gaskets, leather, PVC flooring, foils, silicone pads, sheet materials, solid electrical insulators and related sample materials at the touch of a button.
This advanced Sheet Thickness Gauge performs an automatic mechanical sheet thickness measurement by mechanical scanning.
This professional Film Thickness Meter is designed and engineered offering the newest microchip technology combined with a large Color LCD Display, Automatic Test Programs and Manual Test Programs, Automatic Head Lift, Support for Autoinjection with freely programmable Parameters, simultaneous measurement of Minimum Thickness and Maximum Thickness and Average Thickness, Real-Time Test Monitoring, Automatic Calibration, included Calibration Standard, user-friendly Application, user-friendly Menu Navigation, user-friendly Programming, user-friendly Sample Handling, integrated safety features, integrated Memory, a seamless PC-Connectivity and PC Software, an ergonomic design, reliable performance and longevity.
This professional Film Thickness Mechanical Scanning Tester is designed and engineered in accordance with international test standards including:
- ASTM D374 (Standard Test Methods for Thickness of Solid Electrical Insulation)
- ASTM D1777 (Standard Test Method for Thickness of Textile Materials)
- ASTM F36-99 (Standard Test Method for Compressibility and Recovery of Gasket Materials)
- ASTM F2251 (Standard Test Method for Thickness Measurement of Flexible Packaging Material)
- ISO 534 (Paper and board — Determination of thickness, density and specific volume)
- ISO 2589 (Leather — Physical and mechanical tests — Determination of thickness)
- ISO 3034 (Corrugated fibreboard — Determination of single sheet thickness)
- ISO 4593 (Plastics — Film and sheeting — Determination of thickness by mechanical scanning)
- ISO 5084 (Textiles — Determination of thickness of textiles and textile products)
- ISO 12625-3 (Tissue paper and tissue products — Part 3: Determination of thickness, bulking thickness and apparent bulk density and bulk)
- DIN EN 428 (Resilient floorcoverings; determination of overall thickness; German version EN 428:1993)
- DIN EN 1942 (Self adhesive tapes - Measurement of Thickness)
- DIN 53105 (Testing of paper and board; determination of single sheet bulking thickness, bulking density and bulk)
- DIN 53370 (Testing Of Plastics Films - Determination Of The Thickness By Mechanical Scanning)
- TAPPI T411 (Thickness (caliper of paper, paperboard, and combined board, Test Method TAPPI/ANSI T 411 om-21)
- BS 3983 (BS EN 3983:2013 Aerospace series. Aluminium alloy AL-P7050-. T7651. Plate. 6 mm < a ≤ 160 mm, Category: 49.025.20 Aluminium.)
- BS 4817 (Aerospace series. Passive UHF RFID tags intended for aircraft use)
- BS 7387 (Method for Determination of the Bulking Thickness, Apparent Bulk Density, Compressibility, & Compressibility Index of Soft Creped Tissue Paper)
Mechanical Film Thickness Meter - Features:
- Newest Microchip Technology
- Instant Mechanical Film Thickness Test
- Instant Fabric Thickness Measurement
- Instant Sheet Thickness Measurement
- Large Color LCD Display
- Automatic Test Programs & Manual Test Programs
- Automatic Head Lift
- Support for Autoinjection with freely programmable Parameters
- Simultaneous measurement of Minimum Thickness and Maximum Thickness and Average Thickness
- Real-Time Test Monitoring
- Automatic Calibration
- Included Calibration Standard
- User-friendly Application
- User-friendly Menu Navigation
- User-friendly Programming
- User-friendly Sample Handling
- Professional Application
- High Accuracy & High Precision
- Integrated safety features
- Integrated Memory
- Seamless PC-Connectivity & PC Software
- Ergonomic Design & Reliable Performance
- Longevity
- Engineered in accordance with international test standards including ASTM D374, ASTM D1777, ISO 4593, ISO 534, ISO 3034, TAPPI T411, BS 3983, BS 4817
Sheet Thickness Gauge – Specifications:
Model | QPI-STM2800 |
---|---|
Newest Microchip Technology | Yes |
Display | Large Color LCD Display |
Measurement Range | 0.0mm - 2.0mm 0.0mm - 12.0mm optional |
Speed | 10RPM |
Display Resolution | 0.1µm |
Measurement Pressure | Thin Film 17.5±1 Kpa Paper 50±1 Kpa |
Injection Range | 0mm - 1000mm |
Speed | 0.1mm/s - 99.9mm/s |
Standard Indenter | Thin Film 50 mm2 Paper 200 mm2 Optional custom engineered Indenter |
Automatic Thickness Measurement Programs | Yes |
Real Time Monitoring | Yes |
Automatic Calibration | Yes |
User-friendly Application | Yes |
User-friendly Application | Yes |
User-friendly Menu Navigation | Yes |
User-friendly Sample Handling | Yes |
Integrated Memory | Yes |
Included Calibration Standard | Yes |
High Accuracy & High Precision | Yes |
Seamless PC-Connectivity & PC-Software | Yes |
High Precision & High Accuracy | Yes |
Ergonomic Design & Reliable Performance | Yes |
Voltage | 110VAC - 240VAC 50Hz/60Hz |
Engineered in accordance with international test standards including ASTM D374, ASTM D1777, ISO 4593, ISO 534, ISO 3034, TAPPI T411, BS 3983, BS 4817 |
Mechanical Film & Fabric Thickness Meter– Included items:
- Automatic Mechanical Film & Fabric Thickness Meter
- Accessories
- Carefully Calibrated
- Calibration Certificate
- Quality Certificate
- Extended Warranty
- Lifetime Support
- User Manual
