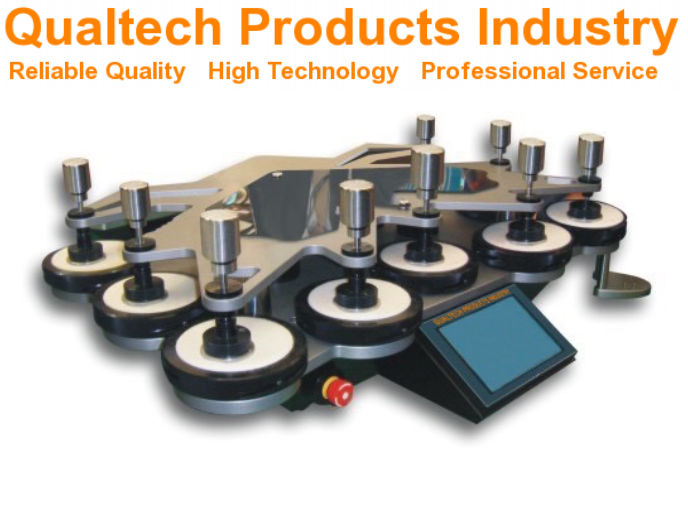

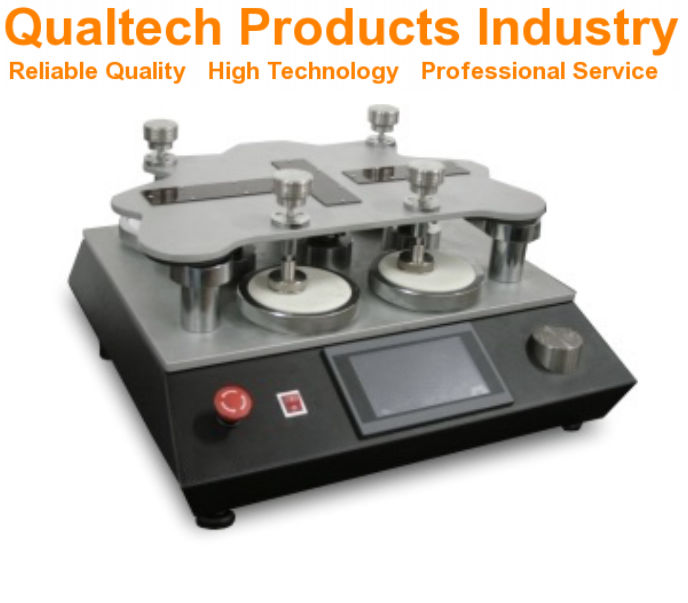

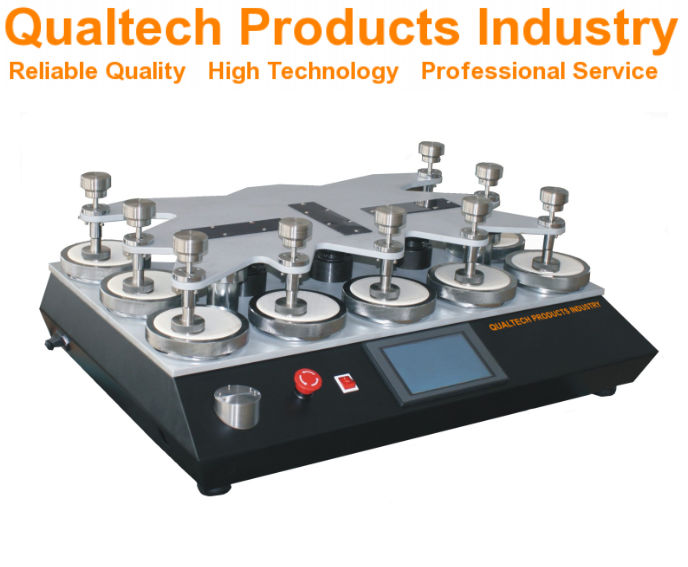

Product Description:
Qualtech Products Industry Martindale Tester is a professional Martindale Abrasion and Pilling Tester to instantly determine the Abrasion and Pilling Performance of textile samples at the touch of a button.
The Martindale Abrasion and Pilling Test is performed in the textile industry and in the leather industry when manufacturing and dyeing fabrics and textiles and leather products. The Martindale Abrasion Test performs a specified Martindale Abrasion Motion to determine the resistance of samples to abrasion and pilling. During the Martindale Test the textile structure of the sample is exposed to a specified Abradant whilst performing a specified Martindale Wear Motion under specified low pressure.
The Martindale Pilling Test evaluates the resistance of samples to pilling. Pilling is the formation of a tiny balls of broken and entangled fibers on the surface of the fabric or textile sample by abrasion or rubbing.
The Martindale Abrasion and Pilling Test indicates the
- Wear Resistance
- Abrasion Resistance
- Pilling Resistance
- Change in Appearance
- Textile Classification
of fabrics and textile samples and simulates the durability of fabrics and textile samples in daily use.
This professional Martindale Abrasion Tester is designed and engineered offering the newest microchip technology combined with a large Touchscreen Display, an advanced Constant Speed Technology, continuous Speed Control, Automatic Textile and Fabric Sample Test Programs, up to eight Sample Platforms, included precision-engineered Abrasion Heads, additional optional available precision-engineered Abrasion Heads, included calibrated Test Loads, additional optional available precision-engineered Test Loads, an easy Abrasion Media Swap System, an easy Test Load Swap System, an easy Sample Mount System, user-friendly Menu Navigation, user-friendly application, user-friendly sample handling, high accuracy and high precision, an ergonomic design, reliable performance, longevity and much more.
The large Color Touchscreen Display presents a wide range of test data and test details for an advanced and automatic Martindale Sample Test Analysis including the number of completed Abrasion Cycles, the number of preset Target Abrasion Cycles and much more.
This advanced Martindale Abrasion Tester is suitable for a wide range of samples including fabrics, leather samples, woven fabrics, non-woven fabrics, knit apparel, household textiles, industrial textiles, synthetics, membranes, floor coverings and related sample materials.
This professional Martindale Abrasion Tester is designed and engineered in accordance with international test standards including:
- ASTM D3886 (Standard Test Method for Abrasion Resistance of Textile Fabrics (Inflated Diaphragm Apparatus)
- ASTM D4966 (Standard Test Method for Abrasion Resistance of Textile Fabrics (Martindale Abrasion Tester Method))
- ASTM D4970 (Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Martindale Tester)
- ISO 12945-2 (Textiles — Determination of fabric propensity to surface fuzzing and to pilling — Part 2: Modified Martindale method)
- ISO 12947-1 (Textiles — Determination of the abrasion resistance of fabrics by the Martindale method — Part 1: Martindale abrasion testing apparatus)
- ISO 12947-2 (Textiles — Determination of the abrasion resistance of fabrics by the Martindale method — Part 2: Determination of specimen breakdown)
- ISO 20344 (Personal protective equipment — Test methods for footwear)
- DIN 53863 (Testing of Textiles; Abrasion Test Methods for Textile Planar Fabrics, Principles)
- BS 3424
Martindale Abrasion Tester - Features:
- Newest Microchip Technology
- Large Color Touchscreen Display
- Martindale Abrasion Test
- Martindale Pilling Test
- Up to 9 Sample Platforms
- Advanced Constant Speed Technology
- Instant Martindale Abrasion Test Program
- Included precision-engineered Abrasion Heads
- Optional available precision-engineered Abrasion Heads
- Wide range of available Abrasion Media
- Calibrated Test Loads
- Optional additional custom engineered Test Loads available
- Easy Sample Mount System
- Easy Abrasion Media Swap System
- User-friendly Application
- User-friendly Sample Handling
- High Accuracy & High Precision
- Ergonomic Design
- Reliable Performance & Longevity
- Engineered in accordance with international test standards including ASTM D3886, ASTM D4966, ASTM D4970, ISO 12945-2, ISO 12947-1, ISO 12947-2, ISO 20344, BS 3424, DIN-5386, IWS TM196 TM112
Martindale Abrasion Tester - Specifications:
| Model | QPI-MAT5800 | QPI-MAT6800 | QPI-MAT8800 |
|---|---|---|---|
| Newest Microchip Technology | Yes | Yes | Yes |
| User Interface | Large Color LCD Display Softtouch Buttons | Large Color Touchscreen Display | Large Color Touchscreen Display |
| Instant Automatic Martindale Abrasion & Pilling Test | Yes | Yes | Yes |
| Abrasion Heads | 4 | 9 | 9 |
| Abrasion Speed | 20 - 70 RPM Continuously Adjustable | 20 - 70 RPM Continuously Adjustable | 20 - 70 RPM Continuously Adjustable |
| Maximum Abrasion Cycles | 999999 | 999999 | 999999 |
| Maximum Motion | Horizontal: 60 ±0.5 mm Vertical: 24 ±0.5 mm | Horizontal: 60 ±0.5 mm Vertical: 24 ±0.5 mm | Horizontal: 60 ±0.5 mm Vertical: 24 ±0.5 mm |
| Sample Holder Weight | 200 ±1 g | 200 ±1 g | 200 ±1 g |
| Abrasion Heads | 200 g 1.96 N 9 KPa Ø 28.8 x 0.084 mm 155 g 1.52 N 12 KPa Ø 90 x 0.10 mm | 200 g 1.96 N 9 KPa Ø 28.8 x 0.084 mm 155 g 1.52 N 12 KPa Ø 90 x 0.10 mm | 200 g 1.96 N 9 KPa Ø 28.8 x 0.084 mm 155 g 1.52 N 12 KPa Ø 90 x 0.10 mm |
| Included Test Load for Fabrics | 260 ±1 g, 395 ±2 g, 594 ±2 g | 260 ±1 g, 395 ±2 g, 594 ±2 g | 260 ±1 g, 395 ±2 g, 594 ±2 g |
| Weight of Sample Presser | 2385 ±10 g | 2385 ±10 g | 2385 ±10 g |
| User-friendly Menu Navigation | Yes | Yes | Yes |
| User-friendly Application | Yes | Yes | Yes |
| User-friendly Sample Handling | Yes | Yes | Yes |
| Wide range of Abrasion Media available | Yes | Yes | Yes |
| High Precision & High Repeatability | Yes | Yes | Yes |
| Ergonomic Design | Yes | Yes | Yes |
| Reliable Performance & Longevity | Yes | Yes | Yes |
| Voltage | 100VAC - 240VAC 50Hz/60Hz | 100VAC - 240VAC 50Hz/60Hz | 100VAC - 240VAC 50Hz/60Hz |
| Engineered in accordance with international test standards including ASTM D3886, ASTM D4966, ASTM D4970, ISO 12945-2, ISO 12947-1, ISO 12947-2, ISO 20344, BS 3424, DIN-5386, IWS TM196 TM112 | |||
Martindale Abrasion Tester – Included items:
- Automatic Martindale Abrasion Tester
- Abrasion Heads Kit
- Test Loads
- Accessories
- Quality Certificate
- Carefully Calibrated
- Calibration Certificate
- User manual
- Extended Warranty
