Hardness Test according to Wolff Wilburn
ASTM D3363 BS 3900-E19
ISO 15184 EN 13523-4

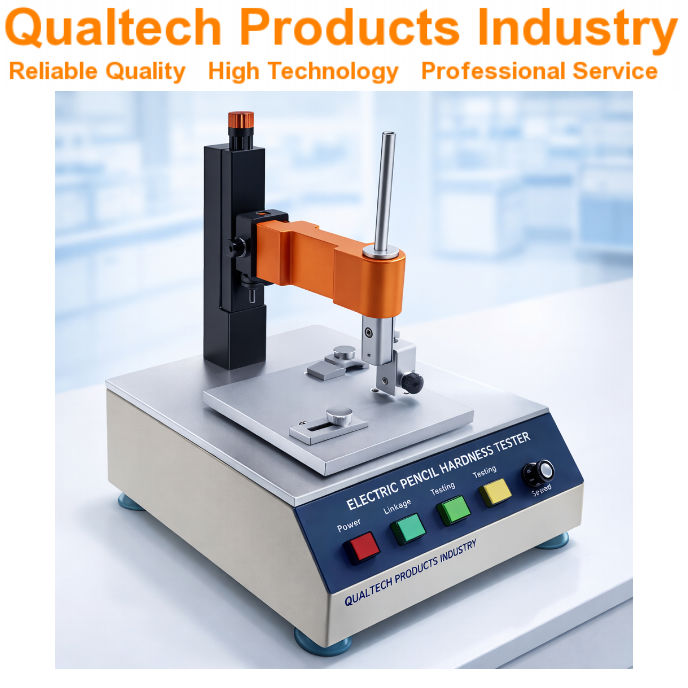

Electric Pencil Hardness Test - Application:

1. Purpose of the Pencil Hardness Test

The Pencil Hardness Test is a surface mechanical resistance test used to quantify:

• scratch hardness
• mar resistance
• surface deformation resistance
• coating cure completeness
• film integrity and brittleness
• It is widely used in:
• paint & coatings
• polymer films
• automotive clear coats
• powder coatings
• printed electronics
• optical coatings
• industrial finishes

It provides a fast, repeatable, low‑cost hardness index correlated to coating crosslink density and surface mechanical strength.

2. Engineering Principle Behind the Method

The test uses graphite pencils of known hardness as a controlled, calibrated indenter.

Graphite hardness increases with:

• higher clay content
• smaller particle size
• higher binder density

This makes pencil hardness a repeatable mechanical scale.

The pencil acts as a conical indenter with:

• defined tip geometry
• defined material hardness
• defined contact pressure

This creates a controlled scratch load on the coating.

3. Pencil Hardness Scale (Wolff–Wilburn Scale)

The scale runs from 9B (softest) to 9H (hardest):

• B pencils → soft graphite → lower scratch force → used to detect marring
• H pencils → hard graphite → higher scratch force → used to detect surface failure

The typical progression is:

9B → 8B → … → B → HB → F → H → 2H → … → 9H

Each step increases the scratch load and surface stress.

4. Test Setup (ASTM D3363 / ISO 15184 Requirements)

4.1 Pencil Preparation

Engineers must prepare each pencil to a standardized geometry:

• Sharpen to expose graphite
• Sand the tip on 400‑600 grit abrasive
• Create a flat, circular contact surface
• Ensure the edge is sharp and perpendicular
• This ensures consistent contact area and repeatable indentation pressure.

4.2 Test Angle

The pencil must contact the surface at 45° ± 1°.

This angle controls:

• normal force
• tangential force
• scratch propagation
• failure mode consistency

Automatic testers (like yours) maintain this angle perfectly.

4.3 Applied Force

Manual testers rely on operator force.
Automatic testers apply a constant, calibrated load (typically 500g, 750g, or 1000g).

This eliminates:

• operator variability
• inconsistent pressure
• angle drift
• speed variation

5. Test Procedure (Engineer‑Level Detail)

Step 1 — Start with the hardest pencil (9H)

Move from hard → soft until the coating stops failing.

Step 2 — Draw a 1 cm line under constant load

The pencil is moved across the coating at a controlled speed (automatic testers ensure this).

Step 3 — Inspect the scratch

Experts look for:

• gouging (material removal)
• cutting (penetration to substrate)
• plowing (plastic deformation)
• marring (surface shine change)
• cohesive failure (cracking within the coating)
• adhesive failure (delamination from substrate)

Step 4 — Determine two values

ASTM D3363 defines:

• Hardest pencil that does NOT cut through the coating → Hardness Rating
• Softest pencil that DOES NOT mar the surface → Mar Resistance Rating

These two values together describe the coating’s surface mechanical profile.

6. Engineering Interpretation of Results

High H rating (e.g., 6H–9H)

Indicates:

• high crosslink density
• high surface hardness
• excellent scratch resistance
• brittle or rigid coating

Used in:

• automotive clear coats
• industrial machinery coatings
• powder coatings

Low H / B rating (e.g., HB–2B)

Indicates:

• flexible coating
• lower crosslink density
• higher elasticity
• lower scratch resistance

Used in:

• flexible films
• elastomeric coatings
• soft‑touch finishes

7. Why this Automatic Pencil Hardness Testers Is A Better Choice:

This professional Automatic Pencil Hardness Testers eliminates:

• angle variation
• inconsistent pressure
• speed variation
• operator fatigue
• subjective interpretation

This produces:

• repeatable, traceable results
• ISO/ASTM compliance
• higher inter‑laboratory agreement
• better QC reproducibility

This is why major labs prefer automated systems. The Pencil Hardness Test is a controlled scratch test using calibrated graphite pencils to quantify coating surface hardness, mar resistance, and mechanical durability. It is governed by ASTM D3363 and ISO 15184, and when performed with an automatic tester, it provides highly repeatable, operator‑independent results suitable for industrial QC and R&D.
