Particle Size Analyzer

Particle Size Distribution Analyzer

Particle Size Measurement With Ease

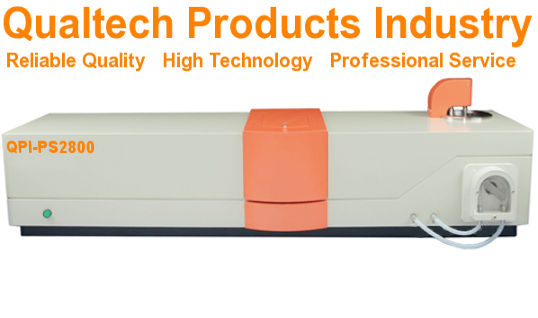

Model PS2800

Particle Size Analyzer

Product Description:

Qualtech Products Industry Particle Size Analyzer is a precision instrument to measure the size range and mean size of particles in samples, e.g. flecks, droplets, bubbles. Flecks are solid particles, droplets are particles in liquids and fluids, bubbles are measured in gas.

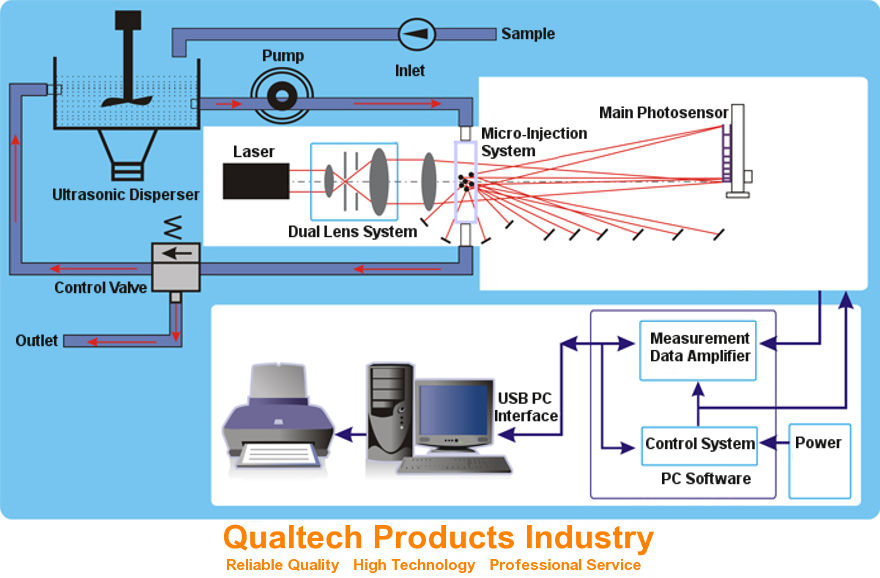

This Particle Size Analyzer is designed and engineered offering the newest microchip technology combined with a precision laser and a precision dual lens optical system to ensure high accuracy, high repeatability and fully automatic particle size analysis at the touch of a button.

This precision Particle Analyzer is user-friendly and ergonomic offering a seamless USB PC-connectivity for advanced particle size measurement, data management, data analysis, data presentation and data sharing.

The precision laser emits a red laser beam with a wavelength of λ = 670 nm and the optical system is a dual lens system offering a multimodal distribution and unimodal distribution particle size measurement with automatic calibration.

The integrated temperature and humidity sensors offer additional real-time monitoring of the sample conditions and the optional dehumidification module (available as accessory) automatically remove possible moisture.

This professional Particle Size Analyzer is the preferred Particle Size Measurement System in a wide range of different fields including, universities, chemical industry, pharmaceutical industry, food industry and mining industry for research and quality management.

This precision Particle Size Analyzer is designed and engineered in accordance with International Test Standards, e.g. ASTM D971-12 (Standard Test Method for Interfacial Tension of Oil Against Water by the Ring Method), ISO 6295.

Particle Size Analyzer – Features:

  • Extensive Measurement Range
  • Newest Microchip Technology
  • Automatic Calibration
  • Unimodal & Multimodal Measurement
  • Precision Laser
  • Dual Lens System
  • Automatic Optical System & Lens Alignment
  • Integrated Automatic Sample Micro-Injection System
  • User-friendly Sample Handling
  • Dehumidification Module (Optional Available)
  • User-friendly Programming & Automatic Calibration
  • Seamless PC-Connectivity & PC Software
  • High Accuracy & Reliable Performance
  • User-friendly & Ergonomic Design
Particle Analyzer



Particle Size Distribution Measurement

Particle Distribution Analyzer

Particle Size Analyzer – Specifications:

ModelQPI-PS2800
Measurement Range0.02 - 2000 µm
Accuracy±0.5%
Repeatability±0.75%
Injection ModeIntegrated Automatic Micro-Injection System
Measurement ModelUnimodal, Multimodal
Optical SystemDual Lens System with Automatic Alignment
User-friendly Sample Handling
Optional Dehumidification Module
Newest Microchip Technology
Seamless PC-Connectivity & PC Software
High Precision & High Repeatability
User-friendly & Ergonomic Design
Reliable Performance & Longevity

Particle Sizing Analyzer

Particle Size Distribution Analyzer

Particle Size Measurement With Ease

Model PS1500

Particle Size Distribution Analyzer

Product Description:

Qualtech Products Industry Particle Size Distribution Analyzer and Particle Sizing Analyser is a precision instrument to measure the size range and mean size of particles in samples, e.g. flecks, droplets, bubbles. Flecks are solid particles, droplets are particles in liquids and fluids, bubbles are measured in gas.

This Particle Sizing Analyzer is designed and engineered offering the newest microchip technology combined with a precision laser and a precision dual lens optical system to ensure high accuracy, high repeatability and fully automatic particle size analysis at the touch of a button.

This precision Particle Sizing Analyzer is user-friendly and ergonomic offering a seamless USB PC-connectivity for advanced particle size measurement, data management, data analysis, data presentation and data sharing.

The precision laser emits a red laser beam with a wavelength of λ = 670 nm and the optical system is a dual lens system offering a multimodal distribution and unimodal distribution particle size measurement with automatic calibration.

The integrated temperature and humidity sensors offer additional real-time monitoring of the sample conditions and the optional dehumidification module (available as accessory) automatically remove possible moisture.

This professional Particle Size Distribution Analyzer is the preferred Particle Size Measurement System in a wide range of different fields including, universities, chemical industry, pharmaceutical industry, food industry and mining industry for research and quality management.

This precision Particle Sizing Analyzer is designed and engineered in accordance with International Test Standards, e.g. ASTM D971-12 (Standard Test Method for Interfacial Tension of Oil Against Water by the Ring Method), ISO 6295.

Particle Size Distribution Analyzer – Features:

  • Extensive Measurement Range
  • Newest Microchip Technology
  • Automatic Calibration
  • Unimodal & Multimodal Measurement
  • Precision Laser
  • Dual Lens System
  • Automatic Optical System & Lens Alignment
  • Integrated Automatic Sample Micro-Injection System
  • User-friendly Sample Handling
  • Dehumidification Module (Optional Available)
  • User-friendly Programming & Automatic Calibration
  • Seamless PC-Connectivity & PC Software
  • High Accuracy & Reliable Performance
  • User-friendly & Ergonomic Design

Particle Sizing Analyzer – Specifications:

ModelQPI-PS1500
Measurement Range0.08 - 1100 µm
Accuracy±0.5%
Repeatability±0.75%
LaserPrecision Red Light Laser
Sample Injection ModeIntegrated Automatic Micro Injection System
Max Sample Volume40 ml
Stirring Speed Range100 - 800 RPM Continuously Adjustable
User-friendly Sample Handling
Newest Microchip Technology
Seamless PC-Connectivity & PC Software
High Precision & High Repeatability
User-friendly & Ergonomic Design
Reliable Performance & Longevity

Particle Sizing Equipment

Particle Size Distribution Measurement

Particle Size Measurement With Ease

Model PS1200

Particle Sizing Equipment

Product Description:

Qualtech Products Industry Particle Sizing Equipment is a precision instrument to measure the size range and mean size of particles in samples, e.g. flecks, droplets, bubbles. Flecks are solid particles, droplets are particles in liquids and fluids, bubbles are measured in gas.

This Particle Sizing Equipment is designed and engineered offering the newest microchip technology combined with a precision laser and a precision dual lens optical system to ensure high accuracy, high repeatability and fully automatic particle size analysis at the touch of a button.

This precision Particle Sizing Equipment is user-friendly and ergonomic offering a seamless USB PC-connectivity for advanced particle size measurement, data management, data analysis, data presentation and data sharing.

The precision laser emits a red laser beam with a wavelength of λ = 670 nm and the optical system is a dual lens system offering a multimodal distribution and unimodal distribution particle size measurement with automatic calibration.

The integrated temperature and humidity sensors offer additional real-time monitoring of the sample conditions and the optional dehumidification module (available as accessory) automatically remove possible moisture.

This professional Particle Sizing Equipment is the preferred Particle Size Measurement System in a wide range of different fields including, universities, chemical industry, pharmaceutical industry, food industry and mining industry for research and quality management.

This precision Particle Sizing Equipment is designed and engineered in accordance with International Test Standards, e.g. ASTM D971-12 (Standard Test Method for Interfacial Tension of Oil Against Water by the Ring Method), ISO 6295.

Particle Sizing Equipment – Features:

  • Extensive Measurement Range
  • Newest Microchip Technology
  • Automatic Calibration
  • Unimodal & Multimodal Measurement
  • Precision Laser
  • Dual Lens System
  • Automatic Optical System & Lens Alignment
  • Integrated Automatic Sample Micro-Injection System
  • User-friendly Sample Handling
  • Dehumidification Module (Optional Available)
  • User-friendly Programming & Automatic Calibration
  • Seamless PC-Connectivity & PC Software
  • High Accuracy & Reliable Performance
  • User-friendly & Ergonomic Design

Particle Sizing Equipment – Specifications:

ModelQPI-PS1200
Measurement Range0.1 - 600 µm
Accuracy±0.5%
Repeatability±0.75%
LaserPrecision Red Light Laser
Sample Injection ModeIntegrated Automatic Micro Injection System
Max Sample Volume40 ml
Stirring Speed Range100 - 800 RPM Continuously Adjustable
User-friendly Sample Handling
Newest Microchip Technology
Seamless PC-Connectivity & PC Software
High Precision & High Repeatability
User-friendly & Ergonomic Design
Reliable Performance & Longevity
