Product Description:

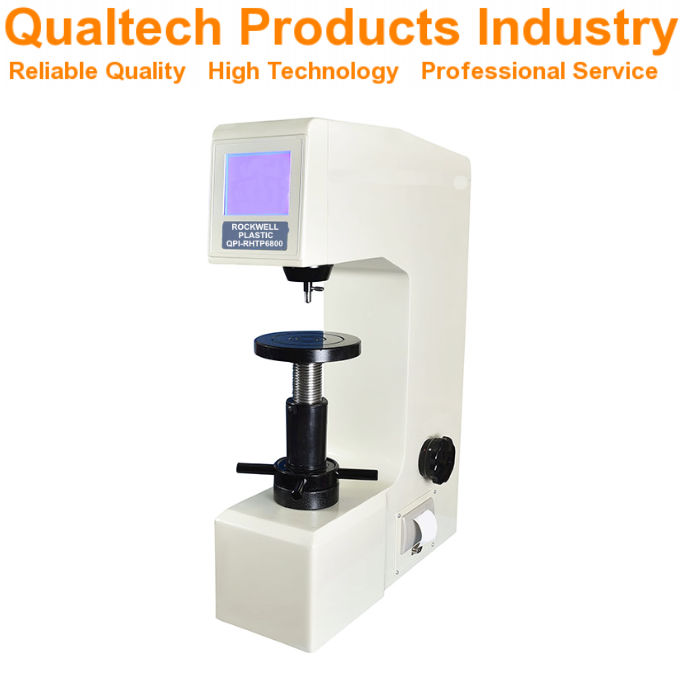

Qualtech Products Industry Rockwell Plastic Hardness Tester is a Rockwell Indentation Hardness Tester for Plastic Samples to instantly measure the hardness of samples in accordance with the Rockwell Hardness Scale at the touch of a button.
This professional Rockwell Plastic Hardness Test Machine is engineered to measure the hardness of a wide range of plastic and softer plastic samples including PVC, PET and many more.
The Rockwell Plastic Hardness Test characterizes the hardness of samples in accordance with the Rockwell Plastic Hardness Scale by surface indentation. To perform a Rockwell Plastic Hardness Test a sample is mounted on the sample holder and a specified Indenter penetrates the sample surface with a specified Test Load. The net increase of the Indentation Depth Impression is measured starting with a fixed Minor Test Load to a Major Test Load and then returning to the Minor Test Load to characterize the Rockwell Plastic Hardness of the sample.
This professional Rockwell Hardness Tester for Plastic Samples is designed and engineered offering the newest microchip technology combined with a large LCD Display presenting all test parameters, an advanced simultaneous Optical Test and Mechanical Test, a wide range of Rockwell Hardness Scales including HRE HRL HRC HRM HRR, an integrated adjustable Light Source, user-friendly Menu Navigation, user-friendly application, user-friendly sample handling, Automatic Test Programs, integrated Conversion Scales, wide range of available precision-engineered Indenters, high accuracy and high precision, Automatic Calibration, included Calibration Tiles, integrated Memory, Direct Printing, a seamless PC-Connectivity and PC Software, an ergonomic design, reliable performance, longevity and much more.
The large Color LCD Display presents a wide range of test data and test details for an advanced and automatic sample hardness analysis including the Test Method, the Test Load, the Indentation Depth, the Hardness, the Test Load Retention Time, the current Hardness Measurement Range, the Sample Measurement Times, the Sample Analysis, the Sample Test Result and much more.
This professional Plastic Rockwell Hardness Tester for Plastic Samples is designed and engineered in accordance with international test standards including:
- ASTM D785 (Standard Test Method for Rockwell Hardness of Plastics and Electrical Insulating Materials)
- ASTM E140 (Standard Hardness Conversion Tables for Metals Relationship Among Brinell Hardness, Vickers Hardness, Rockwell Hardness, Superficial Hardness, Knoop Hardness, Scleroscope Hardness, and Leeb Hardness)
Rockwell Plastic Hardness Tester - Features:
- Newest Microchip Technology
- Large Color Touchscreen Display
- Extensive Sample Test Monitoring with on screen test parameters
- Instant Rockwell Hardness Test for Plastic Samples
- Wide Range of Hardness Scales including HRE, HRL, HRC, HRM, HRR
- Detailed Sample Test Monitoring
- Advanced simultaneous Optical Test & Mechanical Test
- Integrated adjustable Light Source
- User-friendly Menu Navigation
- User-friendly Application
- User-friendly Sample Handling
- Automatic Hardness Test Programs
- Wide range of available precision-engineered Indenters
- Automatic Calibration
- Included Calibration Tiles
- Integrated Memory
- Direct Printing
- Seamless PC-Connectivity & PC Software
- High Accuracy & High Precision
- Ergonomic Design & Reliable Performance
- Engineered in accordance with international test standards including ASTM D785, ASTM E18, ASTM E140, ISO 6508
Plastic Samples Rockwell Hardness Tester - Specifications:
| Model | QPI-RPHT6800 |
|---|---|
| Newest Microchip Technology | Yes |
| Large Color Touchscreen Display | Yes |
| Instant Rockwell Hardness Test for Plastic Samples | Yes |
| Measuring Range | 20 - 88 HRA 20 - 100 HRB 20 - 70 HRC |
| Display Resolution | 0.1 HR |
| Initial Test Load | 3kgf 29.42N 10kfg 98.07N |
| Test Loads | 15kgf 147.1N 30kgf 294.2N 45kgf 441.3N 60 kg 588.4N 100 kg 980.7N 150 kg 1471N |
| Measurement Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
| Conversion Scales | HK, HS, HV, HBW, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Included Rockwell Diamond Indenter | Yes |
| Included Hemispheric Stell Indenter | Yes Ø1.588mm |
| Wide range of included Indenters | Yes |
| Optional Available Indenters | Yes, custom engineered |
| Maximum Sample Height | 230mm |
| User-friendly Menu Navigation | Yes |
| User-friendly Application | Yes |
| User-friendly Sample Handling | Yes |
| Automatic Calibration | Yes |
| Included Calibration Tile | Yes |
| High Accuracy & High Precision | Yes |
| Integrated Memory | Yes |
| Direct Printing | Yes |
| Seamless PC-Connectivity & PC Software | Yes |
| Ergonomic Design &Reliable Performance | Yes |
| Voltage | 110V 60Hz & 220V 50Hz |
| Engineered in accordance with international test standards including ASTM D785, ASTM E18, ASTM E140, ISO 6508 | |
Rockwell Hardness Tester for Plastic Samples – Included items:
- Automatic Rockwell Hardness Tester for Plastic Samples
- Accessories
- Quality Certificate
- Carefully Calibrated
- Calibration Certificate
- User manual
- Extended Warranty
- Lifetime Support
