Product Description:

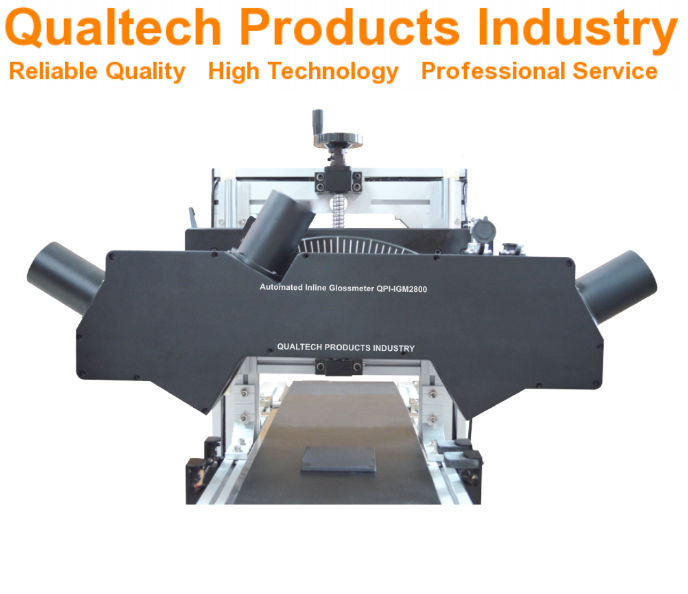

Qualtech Products Industry Inline Glossmeter is an advanced precision Automated Inline Glossmeter engineered for continuous automated non-destructive precision Gloss Measurements for Quality Management and Quality Control at your Industrial Production Facility.
This professional Industrial Inline Glossmeter performs non-contact non-destructive Gloss Measurements for production processes without interrupting the daily workflow and the daily production output helping to improve product quality and to increase quality and revenue by detecting production inconsistencies with Real-Time Monitoring and continuous Gloss Measurements.
This precision Production Inline Glossmeter is easy to install and very user-friendly and detects quality deviations without stopping production.
This professional Inline Glossmeter offers the newest microchip technology combined with a large Precision Gloss Sensor with a Measuring Angle of 60°, Real-Time Gloss Measurements, Non-Contact Gloss Measurements, Non-Destructive Gloss Measurements, Adjustable Gloss Measurement Distance of up to 100 mm, Adjustable Gloss Measurement Angle, large Sensor 23mm x 53mm, Automatic Calibration, High Accuracy and High Precision, seamless PC-Connectivity and PC Software, ergonomic Design and reliable Performance and much more.
This advanced Inline Gloss Meter offers high precision and performs instant and continuous automatic real-time Gloss Measurements at an Angle of 60° with a large 23mm x 53mm Gloss Sensor.
This professional Automated Industrial Glossmeter is designed and engineered in accordance with international test standards including:
- ASTM C584 (Standard Test Method for Specular Gloss of Glazed Ceramic Whitewares and Related Products)
- ASTM D523 (Standard Test Method for Specular Gloss)
- ASTM D2457 (Standard Test Method for Specular Gloss of Plastic Films and Solid Plastics)
- DIN EN ISO 2813 (Paints and varnishes — Determination of gloss value at 20 degrees, 60 degrees and 85 degrees)
- EN ISO 7668 (Anodizing of aluminum and its alloys — Measurement of specular reflectance and specular gloss of anodic oxidation coatings at angles of 20 degrees, 45 degrees, 60 degrees or 85 degrees)
- BS 3900-D5 (Methods of test for paints. Optical tests on paint films. Measurement of specular gloss of non-metallic paint films at 20°, 60° and 85°)
- BS EN ISO 2813:2000 (Paints and varnishes. Measurement of specular gloss of non-metallic paint films at 20°, 60° and 85°)
- DIN 67530
- MFT 30064
- AS 1580
Inline Precision Glossmeter 60° – Features:
- Newest Microchip Technology
- Advanced Gloss Measurement
- Large Gloss Sensor 23mm x 53mm
- Adjustable Sensor to Sample Distance up to 100mm
- Adjustable Measurement Angle
- Automatic Calibration
- Automated Gloss Measurements
- Inline Gloss Measurements
- Instant Gloss Measurements
- Continuous Gloss Measurements
- Real-Time Gloss Measurements
- Non-Contact Gloss Measurements
- Non-Destructive Gloss Measurements
- User-friendly Menu Navigation
- Advanced Light Source Technology
- High Accuracy & High Repeatability
- Ergonomic Design & Reliable Performance
- Engineered in accordance with international test standards including ASTM C584, ASTM D523, ASTM D2457, DIN EN ISO 2813, EN ISO 7668, BS 3900-D5, BS EN ISO 2813:2000, DIN 67530, MFT 30064, AS 1580
Inline Quality Management Glossmeter 60° – Specifications:
| Model | QPI-IGM2800 |
|---|---|
| Measurement Range | 0 - 1000 GU |
| Display Resolution | 0.1 GU |
| Repeatability | 0GU - 100GU ±0.3GU 100GU - 1000GU ±0.3% |
| Sensor Size | 23mm x 53mm |
| Measurement Time | ≤0.5 sec |
| Automatic Calibration | Yes |
| Adjustable Sample to Sensor Distance | Up to 100mm |
| Adjustable Measurement Angle | Yes |
| Automated Gloss Measurements | Yes |
| Inline Gloss Measurements | Yes |
| Instant Gloss Measurements | Yes |
| Continuous Gloss Measurements | Yes |
| Real-Time Gloss Measurements | Yes |
| Non-Contact Gloss Measurements | Yes |
| Non-Destructive Gloss Measurements | Yes |
| User-friendly Menu Navigation | Yes |
| Newest Microchip Technology | Yes |
| Newest Sensor & Light Source Technology | Yes |
| High Accuracy & High Repeatability | Yes |
| Ergonomic Design & Reliable Performance | Yes |
| Voltage | 100VAC - 240VAC 50Hz/60Hz |
| Engineered in accordance with International Test Standards including ASTM C584, ASTM D523, ASTM D2457, DIN EN ISO 2813, EN ISO 7668, BS 3900-D5, BS EN ISO 2813:2000, DIN 67530, MFT 30064, AS 1580 | |
Automated Inline High-Precision Glossmeter – Included items:
- Automated Inline High-Precision Glossmeter
- PC Software
- Carrying Box
- Carefully Calibrated
- Calibration Certificate
- Quality Certificate
- Extended Warranty
- Lifetime Support
- User Manual
