Product Description:

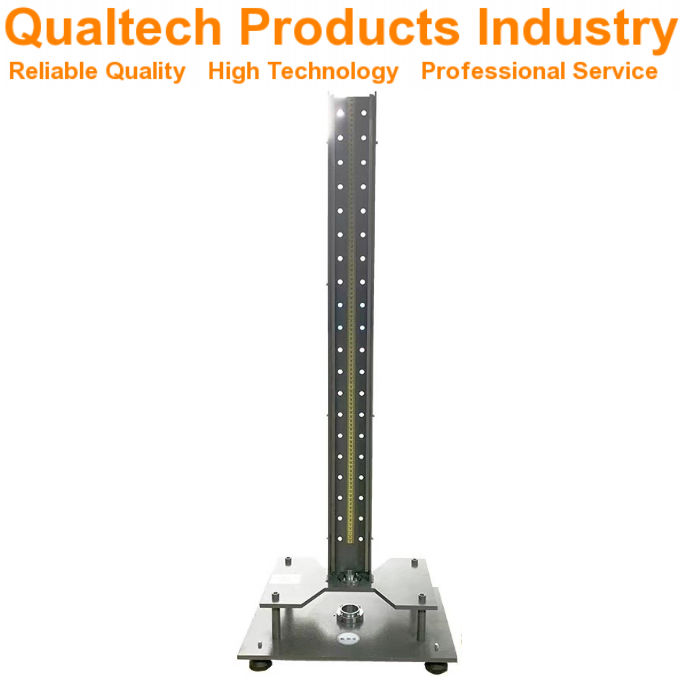

Qualtech Products precision Dupont Impact Tester is a precision Impact Tester to instantly determine the Impact Resistance of coated samples.

To perform a DuPont Impact Test the coated substrate is placed face up in the sample area of the DuPont Impact Tester. A specified Impact Head with a specified weight is dropped onto the substrate from a specified height. After the impact of the DuPont Presser the deformation and the damage that possibly occurred on the coating and the substrate is visually examined and compared for research and quality testing.

This professional DuPont Impact Tester offers a wide range of Impact Heads, Pressers, Receivers and Test Loads offering a wide range of test applications, an optional Acrylic Glass Protective Cover, high repeatability and high accuracy and is available in two models:

  • QPI-DP180 with a drop height of 500 mm
  • QPI-DP180XL with a drop height of 1000 mm

Custom engineered Pressers, Receivers and Test Loads are available to meet a wide range of test standards including DuPont, Honda, Mazda, Mitsubishi, Nissan Test Standards.

Custom engineered Beams are available offering a maximum drop height of up to 2500 mm.

This professional DuPont Impact Tester is designed and engineered in accordance with international test standards including:

  • ASTM
  • JIS K 5600

DuPont Impact Tester - Features:

  • Newest and Updated Design
  • Instant DuPont Impact Test
  • High-Precision Mechanics

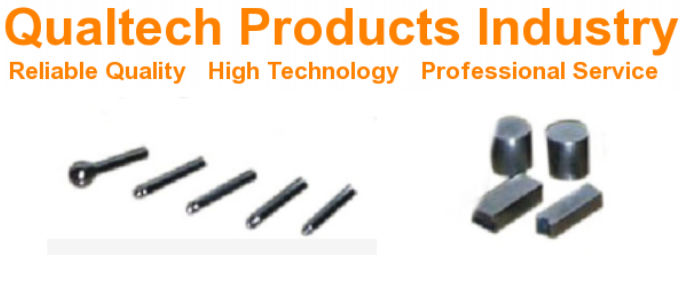

  • Included Pressers 1/16" (0.158 cm), 1/8" (0.3175 cm), 3/16" (0.476 cm), 1/4" (0.635 cm), 1/2" (1.27 cm)
  • Included Receivers 1/16" (0.158 cm), 1/8" (0.3175 cm), 3/16" (0.476 cm), 1/4" (0.635 cm), 1/2" (1.27 cm)
  • Included Test Loads 300 g, 500 g, 1000 g
  • Optional Acrylic Glass Protective Cover
  • Easy Sample Mount
  • User-friendly Application
  • User-friendly Sample Handling
  • High Accuracy & High Precision
  • Ergonomic Design
  • Reliable Performance & Longevity
  • Engineered in accordance with international test standards including ASTM, JIS K5600

DuPont Impact Tester – Specifications:

ModelQPI-DP180QPI-DP180XL
DuPont Impact Tester Standard Height50 mm - 500 mm (optional custom sizes available up to 2500 mm)50 mm - 1000 mm (optional
custom sizes available up to 2500 mm
Custom PartsHonda, Toyota & Mitsubishi Test Standards - Additional custom parts & sizes are available (Please specify when ordering)Honda, Toyota & Mitsubishi Test Standards - Additional custom parts & sizes are available (Please specify when ordering)
Test Loads300 g, 500 g, 1000 g300 g, 500 g, 1000 g
Additional WeightsHonda, Toyota, & Mitsubishi Test Standards - Additional custom made Weights are available as optional accessories, e.g. 3 kg (Honda)Honda, Toyota, & Mitsubishi Test Standards - Additional custom made Weights are available as optional accessories, e.g. 3 kg (Honda)
Receiver Radius1/16" (0.158 cm), 1/8" (0.3175 cm), 3/16" (0.476 cm), 1/4" (0.635 cm), 1/2" (1.27 cm)1/16" (0.158 cm), 1/8" (0.3175 cm), 3/16" (0.476 cm), 1/4" (0.635 cm), 1/2" (1.27 cm)
Presser Radius1/16" (0.158 cm), 1/8" (0.3175 cm), 3/16" (0.476 cm), 1/4" (0.635 cm), 1/2" (1.27 cm)1/16" (0.158 cm), 1/8" (0.3175 cm), 3/16" (0.476 cm), 1/4" (0.635 cm), 1/2" (1.27 cm)
JIS K 5600Available accessories to meet JIS K 5600 (Please specify when ordering)Available accessories to meet JIS K 5600 (Please specify when ordering)
Custom Support Stands, Receivers & PressersHonda, Toyota & Mitsubishi Test Standards - Additional custom made Support Stands, Receivers & Pressers are available (Please specify when ordering)Honda, Toyota & Mitsubishi Test Standards - Additional custom made Support Stands, Receivers & Pressers are available (Please specify when ordering)
High Accuracy & High PrecisionYesYes
User-friendly ApplicationYesYes
User-friendly Sample HandlingYesYes
Ergonomic DesignYesYes
Reliable Performance & LongevityYesYes
Engineered in accordance with international test standards including ASTM, JIS K5600
YesYes

DuPont Impact Tester – Included items:

  • DuPont Impact Tester
  • Accessories
  • Quality Certificate
  • Carefully Calibrated
  • Calibration Certificate
  • User manual
  • Extended Warranty
  • Lifetime Support
