Product Description:

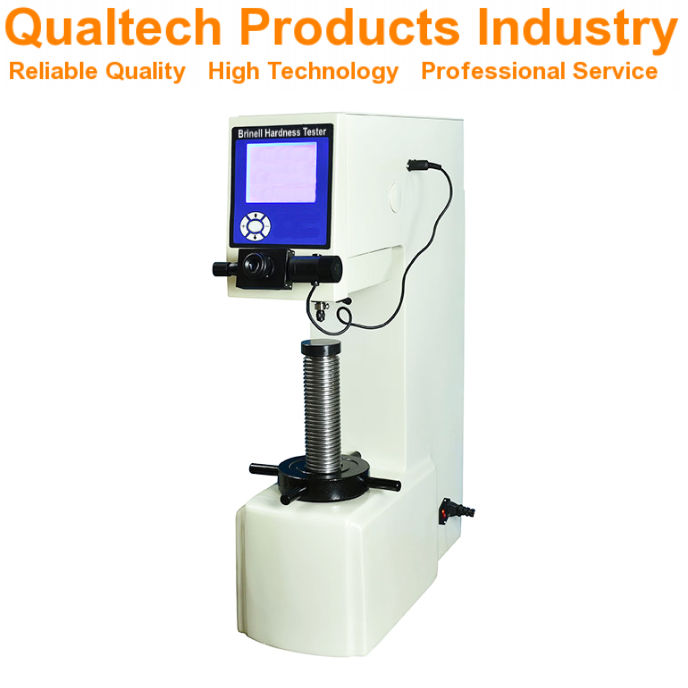

Qualtech Products Industry Small Load Brinell Hardness Tester is a Small Load Brinell Indentation Hardness Tester to instantly measure the hardness of samples in accordance with the Brinell Hardness Scale at the touch of a button.

This professional Brinell Tester is engineered to measure the hardness of a wide range of softer metals and harder metals including Aluminum, Copper, Lead, Steel, Iron, Non-Ferrous Metals and many more.

The Brinell Hardness Test Method characterizes the hardness of samples with the Brinell Hardness Scale by surface indentation. To perform a Brinell Hardness Test a sample is mounted on the sample holder and a Steel Indenter with a ball shaped tip with a diameter of 10 mm penetrates the sample surface with a Test Load of 3000 kgf. The indentation depth is measured to calculate the Brinell Hardness.

This professional Small Loasd Brinell Hardness Tester is designed and engineered offering the newest microchip technology combined with a large LCD Display presenting the test parameters, comfortable Softtouch Buttons, an advanced simultaneous Optical Test and Mechanical Test, an integrated adjustable Light Source, user-friendly Menu Navigation, user-friendly application, user-friendly sample handling, six different Automatic Test Load Programs, automatic Brinell Hardness Calculation, a wide range of available precision-engineered Indenters, high accuracy and high precision, Automatic Calibration, included Calibration Tiles, an ergonomic design, reliable performance, longevity and much more.

This professional Small Load Brinell Hardness Tester is designed and engineered in accordance with international test standards including:

Small Load Brinell Hardness Tester - Features:

  • Newest Microchip Technology
  • Instant Brinell Hardness Test
  • Large LCD Display presenting all test parameters
  • Comfortable Softtouch Buttons
  • Advanced simultaneous Optical Test & Mechanical Test
  • Integrated adjustable Light Source
  • Six different Automatic Test Load Programs
  • Automatic Brinell Hardness Calculation
  • Wide range of available precision-engineered Indenters
  • Six different Test Load Programs for softer metals & harder metals
  • Precision engineered Indenters
  • User-friendly  Menu Navigation
  • User-friendly Application
  • User-friendly Sample Handling
  • Suitable for a wide range of materials including softer metals & harder metals
  • Automatic Calibration
  • Included Calibration Tiles
  • High Accuracy & High Precision
  • Ergonomic Design
  • Reliable Performance & Longevity
  • Engineered in accordance with international test standards including ASTM E10, ISO 6506

Small Load Brinell Hardness Tester - Specifications:

ModelQPI-SLBHT6800
Newest Microchip TechnologyYes
Large LCD DisplayYes
Instant Automatic Small Load Brinell MeasurementYes
Included IndenterBall Indenter 10 mm
Optional Available IndentersYes, Custom engineered
Display Resolution2 µm
Measuring RangeBrinell Hardness Scale
Data ConversionAutomatic Brinell Hardness Calculation
Test Loads1 kgf, 6.25 kgf, 7.813 kgf, 15.625 kgf, 30 kgf, 62,5 kgf
Maximum Sample Height 160 mm
Integrated Optical System MagnificationUp to 50X
User-friendly Menu NavigationYes
User-friendly ApplicationYes
User-friendly Sample HandlingYes
Automatic CalibrationYes
Included Calibration TileYes
High Accuracy & High PrecisionYes
Ergonomic DesignYes
Reliable PerformanceYes
Voltage110V 60Hz & 220V 50Hz
Engineered in accordance with international test standards including ASTM E10, ISO 6506

Small Load Brinell Hardness Tester – Included items:

  • Automatic Small Load Brinell Hardness Tester
  • Accessories
  • Quality Certificate
  • Carefully Calibrated
  • Calibration Certificate
  • User manual
  • Extended Warranty
  • Lifetime Support
