Product Description:

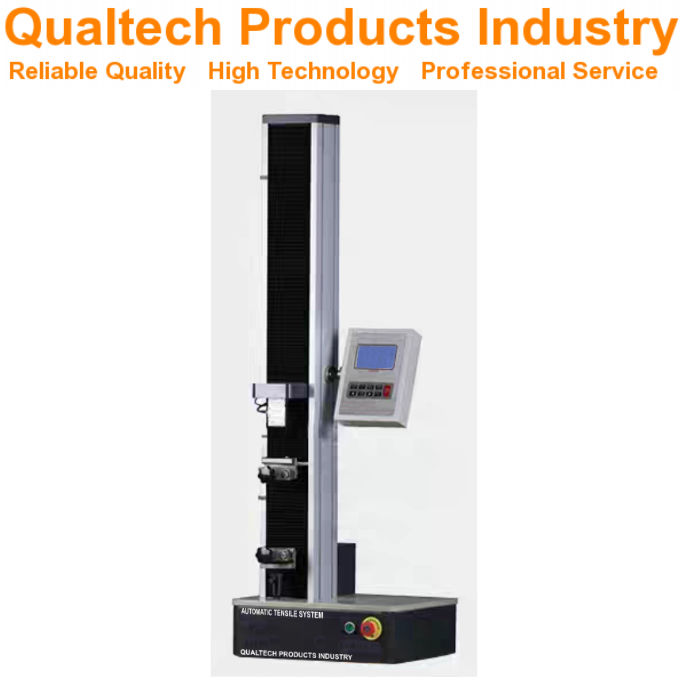

Qualtech Products Industry Digital Single Column Tensile Test System is an advanced Tension Test Equipment to instantly measure the Tensile Strength of samples at the touch of a button.

The Tensile Strength is measured by subjecting a sample to a specified tension until the sample ruptures or shows signs of damage. The Tension Test is performed to measure a wide range of Tensile Properties including:

  • Ultimate Tensile Strength
  • Breaking Strength
  • Elongation Performance
  • Reduction in Size
  • Yield Strength
  • Poisson’s Ratio

This professional Single Column Tensile Pull Testing Equipment is designed and engineered offering the newest technology combined with a large Color LCD Display or a large Color Touchscreen Display, comfortable Softtouch Buttons, Automatic Tensile Testing, advanced mechanical design, wide range of high-precision Test Load Programs, high-precision Test Load Sensors, advanced high-speed Test Data Processing, Automatic Test Programs, user-friendly Menu Navigation, user-friendly programming, user-friendly application, user-friendly sample handling, high accuracy and high precision, wide range of optional accessories to extend the test application, integrated Safety Features, optional Safety Enclosure for advanced safety, seamless USB-PC Connectivity and PC-Software, an ergonomic design, reliable performance, longevity and much more.

This professional Single Pillar Tensile Tester is suitable for a wide range of samples including, paper, plastic, metals, wires, packaging and much more.

This advanced Tensile Strength Tester is designed and engineered in accordance with International Test Standards including:

Tensile Strength Tester - Features:

  • Newest Design & Technology
  • Large Color LCD Display
  • Also available with a large Color Touchscreen Display
  • Comfortable Softtouch Buttons
  • Automatic Tensile Testing
  • Instant Tensile Strength Measurement
  • Instant Breaking Strength Measurement
  • Instant Sample Elongation Measurement
  • Instant Reduction in Area Measurement
  • Instant Yield Strength Measurement
  • Instant Poisson’s Ratio Measurement
  • Advanced Mechanical Design
  • Wide range of high-precision Test Load Programs
  • High-precision Test Load Sensors
  • Advanced high-speed Test Data Processing
  • Automatic Test Programs
  • User-friendly Menu Navigation
  • User-friendly Programming
  • User-friendly Application
  • User-friendly Sample Handling
  • Wide range of optional Accessories to extend the test application
  • Integrated Safety Features
  • Optional Safety Enclosure for advanced safety
  • Seamless USB-PC Connectivity & PC-Software
  • High Accuracy & High Precision
  • Ergonomic Design
  • Reliable Performance & Longevity
  • Engineered in accordance with international test standards including ASTM D638, ISO 527

Tensile Pull Testing Machine - Specifications:



Edit
Model QPI-SCT6800 QPI-SCT8800
Newest Microchip Technology Yes Yes
Display Large Color LCD Display Large Color Touchscreen Display
Comfortable Softtouch Buttons Yes No
Instant Automatic Tensile Test Yes Yes
Single Pillar System Yes Yes
Maximum Test Load 30 kN 30 kN
Test Ratio 0.5
Ratio 1.0
Ratio 0.5
Ratio 1.0
Tensile Strength Measurement Range 0.2% - 100% Ratio 0.5
0.4% - 100% Ratio 1.0
0.2% - 100% Ratio 0.5
0.4% - 100% Ratio 1.0
Accuracy ±0.5% Ratio 0.5
±1% Ratio 1%
±0.5% Ratio 0.5
±1% Ratio 1%
Display Resolution 1/500000 1/500000
Sample Deformation Measurement 0.2% - 1--% 0.2% - 1--%
Accuracy ±0.5% ±0.5%
Display Resolution 1/500000 1/500000
Deformation Measurement Range 10 mm - 800 mm 10 mm - 800 mm
Display Resolution 0.008 mm 0.008 mm
Accuracy ±0.5% ±0.5%
Speed Range 0.001 mm/min - 500 mm/min 0.001 mm/min - 500 mm/min
Speed Accuracy ±0.2% ±0.2%
Maximum Sample Width 380 mm 380 mm
Maximum Tensile Sample Pulling Distance 1100 mm 1100 mm
Wide range of standardized and precision-engineered Sample Holders & Sample Clamps Yes Yes
Optional available custom engineered Sample Holders & Sample Clamps Yes Yes
Easy Sample Mount System Yes Yes
Included Standard Sample Holder Yes Yes
Easy Sample Holder Swap System Yes Yes
Advanced Constant Speed Technology Yes Yes
Extensive Sample Test Monitoring with on screen Test Parameters Yes Yes
User-friendly Menu Navigation Yes Yes
User-friendly Application Yes Yes
User-friendly Sample Handling Yes Yes
High Accuracy & High Precision Yes Yes
Ergonomic Design Yes Yes
Reliable Performance & Longevity Yes Yes
Voltage 100VAC - 240VAC 50Hz/60Hz 100VAC - 240VAC 50Hz/60Hz
Engineered in accordance with international test standards including ASTM D638, ISO 527



Single Column Tensile Tester – Included items:

  • Automatic Single Column Tensile Test System
  • Accessories
  • Quality Certificate
  • Carefully Calibrated
  • Calibration Certificate
  • User manual
  • Extended Warranty
