Paint Film Applicators

Thin Film Applicators

Coating Film Applicators

ASTM D333  ASTM D823 ASTM D2801 ASTM D4062

Film Applicator

Product Description:

Qualtech Products Industry Film Applicator is a series of paint film application and coating application instruments to conveniently apply a liquid sample with a specified film thickness, e.g. coating, paint, ink, chemicals, cosmetics, onto substrates. The liquid sample is applied during its liquid state and it forms a solid thin film after completing its drying time cycle. The film application with a specified film thickness with a Film Applicator is a standardized and recognized test method to conveniently form test films of samples under controlled and repeatable conditions for research and quality management.

This precision Film Applicator series assists with the application of specified and controlled test films onto solid samples, e.g. plastic panels, paper sheets, metal panels, glass plates, Hiding Power Charts and related materials whilst maintaining the specified film thickness during the application process and ensures repeatable results.

This Film Applicator series is designed and engineered of Stainless Steel to offer precision, reliability, repeatability and longevity and conveniently provides details about the Wet Film Thickness. These Film Applicators can be used to drawdown films by hand or automatically by combining the Film Applicator with the Automatic Film Applicator.

Available Film Applicators:

  • Bar Film Applicator – One-Sided Film Applicator – Single-Sided Film Applicator
  • U-Shaped Film Applicator – Two-Sided Film Applicator
  • Baker Film Applicator – Four-Sided Film Applicator
  • Bird Film Applicator –  Four-Sided Film Applicator
  • Frame Film Applicator – Four-Sided Film Applicator
  • Cube Film Applicator – Ideal in combination with the Drying Time Recorder
  • Casting Knife Film Applicator – Micrometric Film Applicator

This Film Applicator series is designed and engineered in accordance with international test standards including:

Bird Film Applicator – One-Sided Film Applicator

One Sided Film Applicator

Product Description:

Qualtech Products Industry Bar Film Applicator and One-Sided Film Applicator and Bird Film Applicator is designed and precision engineered in accordance with the newest technology.
This precision Bar Film Applicator is made of high-grade and corrosion resistant stainless steel 440C to ensure high accuracy and high precision.

The accuracy of this precision engineered Single-Sided Film Applicator is ±1.0 µm below 50 µm and 2% of the full scale.

This professional Bar Film Applicator is ideal for manual and automatic film application in combination with the Automatic Film Applicator.

This Single-Sided Film Applicator is available in a wide rage of different sizes offering different clearances to best meet your requirements for research and quality management.

This Single-Sided Film Applicator is designed and engineered in accordance with international test standards, e.g. ASTM D823 (Standard Practices for Producing Films of Uniform Thickness of Paint, Varnish, and Related Products on Test Panels).

Bird Film Applicator – One-Sided Film Applicator – Specifications:

Wet Film Application Width100 mm
Total Length128 mm

Bird Film Applicator – Single-Sided Film Applicator – Available Models:

ModelSizeModel
QPI-OS125 µmQPI-OS9250 µm
QPI-OS237.5 µmQPI-OS10300 µm
QPI-OS350 µmQPI-OS11350 µm
QPI-OS475 µmQPI-OS12400 µm
QPI-OS5100 µmQPI-OS13450 µm
QPI-OS6125 µmQPI-OS14500 µm
QPI-OS7150 µmQPI-OS15600 µm
QPI-OS8200 µm

U-Shaped Film Applicator – Two-Sided Film Applicator

Two Sided Film Applicator

Product Description:

Qualtech Products Industry U-Shaped Film Applicator and Two-Sided Film Applicator offer two clearances in a precision engineered U-shape design.

This precision U-Shaped Film Applicator is made of high-grade and corrosion resistant stainless steel 440C to ensure high accuracy and high precision.

The accuracy is ±1.0 µm below 50 µm and 2% of the full scale.

This professional U-Shaped Film Applicator is ideal for manual and automatic film application in combination with the Automatic Film Applicator.

This U-Shaped Film Applicator is available in a wide rage of different sizes offering different clearances to best meet your requirements for research and quality management.

This U-Shaped Film Applicator and Two-Sided Film Applicator are designed and engineered in accordance with international test standards, e.g. ASTM D823 (Standard Practices for Producing Films of Uniform Thickness of Paint, Varnish, and Related Products on Test Panels).

U-shaped Film Applicator – Two-Sided Film Applicator – Specifications:

Wet Film Application Width80 mm
Total Length100 mm

U-Shaped Film Applicator – Two-Sided Film Applicator – Available Models:

ModelSize
QPI-DS125 µm & 50 µm
QPI-DS275 µm & 100 µm
QPI-DS3125 µm & 150 µm
QPI-DS4150 µm & 200 µm
QPI-DS5200 µm & 250 µm (10 mils)
QPI-DS6300 µm & 400 µm
QPI-DS7400 µm & 450 µm

Baker Film Applicator – Four-Sided Film Applicator

Baker Film Applicator

Baker Paint Film Application Gauge ASTM D823

Product Description:

Qualtech Products Industry Baker Film Applicator and Four-Sided Applicator is ideal for high viscous coatings.

The Baker Film Applicator offers four different precision engineered clearances with one clearance on each horizontal surface.

The Baker Film Applicator offers flexibility, user-friendly application and high accuracy combining four different Wet Film Thicknesses in one Film Applicator. The cylindrical design ensures excellent results especially with high viscous liquid samples.

This precision Baker Film Applicator is ideal for manual and automatic film application in combination with the Automatic Film Applicator.

This Baker Film Applicator is available in a wide rage of different sizes offering different clearances to best meet your requirements for research and quality management.

This Baker Film Applicator is designed and engineered in accordance with international test standards, e.g. ASTM D823 (Standard Practices for Producing Films of Uniform Thickness of Paint, Varnish, and Related Products on Test Panels).

Baker Film Applicator – Four-Sided Film Applicator – Specifications:

ModelQPI-FA-SeriesQPI-FAXL-Series
Wet Film Application Width80 mm160 mm
Total Length100 mm190 mm

Baker Film Applicator – Four-Sided Film Applicator – Available Models:

ModelGapsFilm Application WidthModelGapsFilm Application Width
QPI-FA15 µm & 10 µm & 15 µm & 20 µm80 mmQPI-FA1XL25 µm & 50 µm & 75 µm & 100 µm160 mm
QPI-FA225 µm & 50 µm & 75 µm & 100 µm80 mmQPI-FA2XL50 µm & 100 µm & 150 µm & 200 µm160 mm
QPI-FA350 µm & 100 µm & 150 µm & 200 µm80 mmQPI-FA3XL30 µm & 60 µm & 90 µm & 120 µm160 mm
QPI-FA430 µm & 60 µm & 90 µm & 120 µm80 mmQPI-FA4XL100 µm & 200 µm 300 µm 400 µm160 mm
QPI-FA5100 µm & 200 µm 300 µm 400 µm80 mmQPI-FA5XL50 µm & 75 µm & 100 µm & 150 µm160 mm
QPI-FA650 µm & 75 µm & 100 µm & 150 µm80 mmQPI-FA6XL100 µm & 150 µm & 200 µm & 250 µm160 mm
QPI-FA7100 µm & 150 µm & 200 µm & 250 µm80 mmQPI-FA7XL250 µm & 500 µm & 750 µm & 1000 µm160 mm
QPI-FA8250 µm & 500 µm & 750 µm & 1000 µm80 mm

Bird Film Applicator – Four Sided Film Applicator

Bird Film Applicator

Product Description:

Qualtech Products Industry Bird Film Applicator and Four Sided Applicator is ideal for high viscous coatings.

This Bird Film Applicator offers four different precision engineered clearances with one clearance on each horizontal surface.

This precision Bird Film Applicator offers flexibility, user-friendly application and high accuracy combining four different Wet Film Thicknesses with one Film Applicator. The special design offers excellent results especially with high viscous liquid samples.

This professional Bird Film Applicator is ideal for manual and automatic film application in combination with the Automatic Film Applicator.

This Bird Film Applicator is available in a wide rage of different sizes offering different clearances to best meet your requirements for research and quality management.

This Bird Film Applicator is designed and engineered in accordance with international test standards, e.g. ASTM D823 (Standard Practices for Producing Films of Uniform Thickness of Paint, Varnish, and Related Products on Test Panels).

Bird Film Applicator – Four Sided Film – Specifications:

Wet Film Application Width80 mm
Total Length100 mm



Bird Film Applicator – Four Sided Film Applicator – Available Models:

ModelSize
QPI-FAB15 µm & 10 µm & 15 µm & 20 µm
QPI-FAB225 µm & 50 µm & 75 µm & 100 µm
QPI-FAB350 µm & 100 µm & 15 0 µm & 200 µm
QPI-FAB430 µm & 60 µm & 90 µm & 120 µm
QPI-FAB5100 µm & 200 µm 300 µm 400 µm
QPI-FAB650 µm & 75 µm & 100 µm & 150 µm
QPI-FAB7100 µm & 150 µm & 200 µm & 250 µm
QPI-FAB8250 µm & 500 µm & 750 µm & 1000 µm

Frame Film Applicator – Quadruplex Film Applicator – Gap Film Applicator – Four Sided Film Applicator

Frame Film Applicator

Product Description:

Qualtech Products Industry Frame Film Applicator and Four Sided Film Applicator is best suitable for low viscous coatings.

This  Frame Film Applicator offers four different precision engineered clearances and is ideal for Non-Rigid Substances presenting a two sided opening at the center.

This professional Frame Film Applicator offers flexibility, user-friendly application and high accuracy combining four different Wet Film Thicknesses with one Film Applicator. The special design offers excellent results especially with acids and alkaline samples.

This professional Frame Film Applicator is ideal for manual and automatic film application in combination with the Automatic Film Applicator.

This Frame Film Applicator is available in a wide rage of different sizes offering different clearances to best meet your requirements for research and quality management.

This Frame Film Applicator is designed and engineered in accordance with international test standards, e.g. ASTM D823 (Standard Practices for Producing Films of Uniform Thickness of Paint, Varnish, and Related Products on Test Panels).

Frame Film Applicator – Four Sided Film Applicator – Specifications:

Wet Film Application Thickness80 mm
Total Width100 mm

Frame Film Applicator – Four Sided Film Applicator – Available Models:

ModelSize
QPI-FFT125 µm & 50 µm & 75 µm & 100 µm
QPI-FFT250 µm & 100 µm & 150 µm & 200 µm
QPI-FFT330 µm & 60 µm & 90 µm & 120 µm
QPI-FFT45 µm & 10 µm & 15 µm & 20 µm

Cube Film Applicator

Cube Film Applicator

Product Description:

Qualtech Products Industry Cube Film Applicator is a precision Film Applicator ideal for a wide range of film application procedures and as a valuable accessory for  the Drying Time Recorder when automatically determining the drying time of samples.

This professional Cube Film Applicator offers flexibility, user-friendly application and high accuracy combining two different Wet Film Thicknesses with one Film Applicator. The special cubic design ensures excellent results for research and quality management.

This professional Cube Film Applicator is ideal to create parallel film and parallel film stripes and is an ideal accessory for the Drying Time Recorder.

This Cube Film Applicator is available in a wide rage of different sizes offering different clearances to best meet your requirements for research and quality management.

This Cube Film Applicator is designed and engineered in accordance with international test standards, e.g. ASTM D823 (Standard Practices for Producing Films of Uniform Thickness of Paint, Varnish, and Related Products on Test Panels).

Cube Film Applicator – Specifications:

Wet Film Application Width12.7 mm
Total Length25 mm

Cube Film Applicator – Available Models:

ModelSize
QPI-CA137.5 µm & 75 µm
QPI-CA275 µm & 150 µm
Please click here for details about the Automatic Drying Time Recorder:

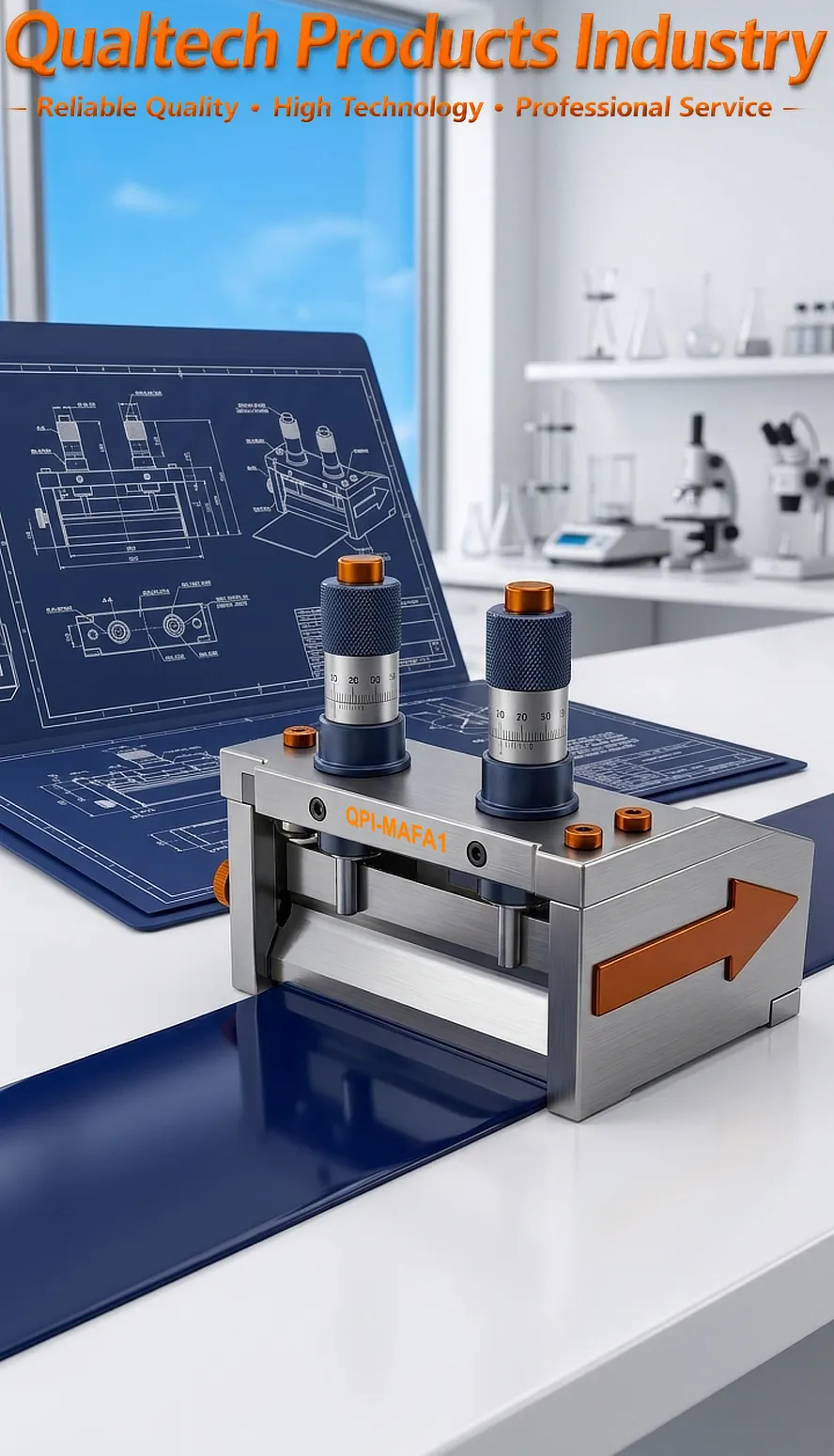

Casting Knife Film Applicator

Micrometric Film Applicator

Doctor Blade Film Applicator

Casting Knife Film Applicator

Product Description:

Qualtech Products Industry Casting Knife Film Applicator and Micrometric Film Applicator is a precision engineered Film Applicator to conveniently apply a wide range of different films and coatings. It is often referred to as Doctor Blade Film Applicator.

This Micrometric Film Applicator is designed and engineered offering a precision engineered blade and precision micrometric film thickness controls.

This Doctor Blade Film Applicator for professional application is available with a blade width of 50 mm, 100 mm, 150 mm and 200 mm and the film thickness can be continuously adjusted in the range from 0 – 3500 µm to best meet your requirements for research and quality management. The graduation on the scale is conveniently presents 10 µm increments.

This Casting Knife Film Applicator is suitable for a large variety precision film applications for research and quality management and it is ideal accessory for your Automatic Film Applicator.

This Micrometric Film Applicator is designed and engineered in accordance with international test standards, e.g. ASTM D823 (Standard Practices for Producing Films of Uniform Thickness of Paint, Varnish, and Related Products on Test Panels).

Casting Knife Film Applicator – Micrometric Film Applicator – Specifications:

Precision±2 µm
Scale0 - 3500 µm

Doctor Blade Film Applicator – Micrometric Film Applicator – Available Models:

ModelBlade Width
QPI-MAFA150 mm
QPI-MAFA2100 mm
QPI-MAFA3150 mm
QPI-MAFA4200 mm
