Product Description:

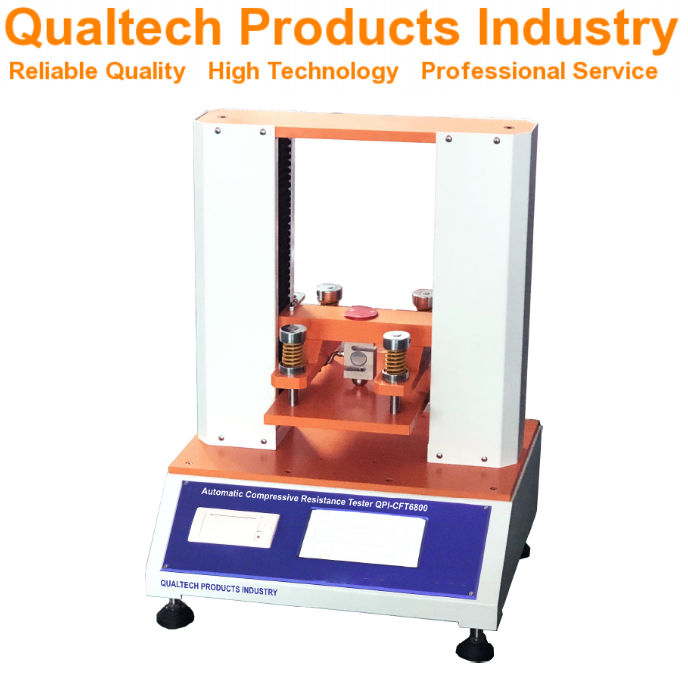

Qualtech Products Industry Paper Roll & Plastic Pipe Deflection Tester is a precision Automatic Parallel Platen Loading Tester to instantly evaluate the Compressive Strength Resistance of paper rolls, cardboard rolls, paper tubes, cardboard tubes, plastic pipes, plastic tubes, PVC rolls, PVC tubes and related samples at the touch of a button.
This professional Plastic Pipe Deflection Tester is designed and engineered offering the newest microchip technology combined with a large Color Touchscreen Display, an intuitive Menu Navigation, Preset Test Programs, user-friendly Programming, user-friendly Application, user-friendly Sample Handling, High Accuracy and High Precision, integrated Safety Features, integrated Mini Printer, an optional seamless PC-Connectivity and PC-Software, an ergonomic Design, reliable Performance, optional seamless PC-Connectivity and PC Software and much more.
This precision Paper Roll Compression Tester offers a wide range of test applications including Preset Test Modes:
- Automatic Compression Test: Determine the compression strength Resistance of the samples
- Endurance Test: Apply continuous pressure onto the sample to determine the endurance performance of samples
This precision Automatic Paper and Plastic Tube Crush Tester is an advanced Compression Strength Resistance Tester to instantly measure the performance and the quality of a wide range of samples including industrial packaging, pipes, tubes, rolls, boxes and much more.
This professional Automatic Compressive Strength Resistance and Cardboard and Plastic Pipe Deflection Tester is designed and engineered in accordance with international test standards including:
- ASTM D642 (Standard Test Method for Determining Compressive Resistance of Shipping Containers, Components, and Unit Loads)

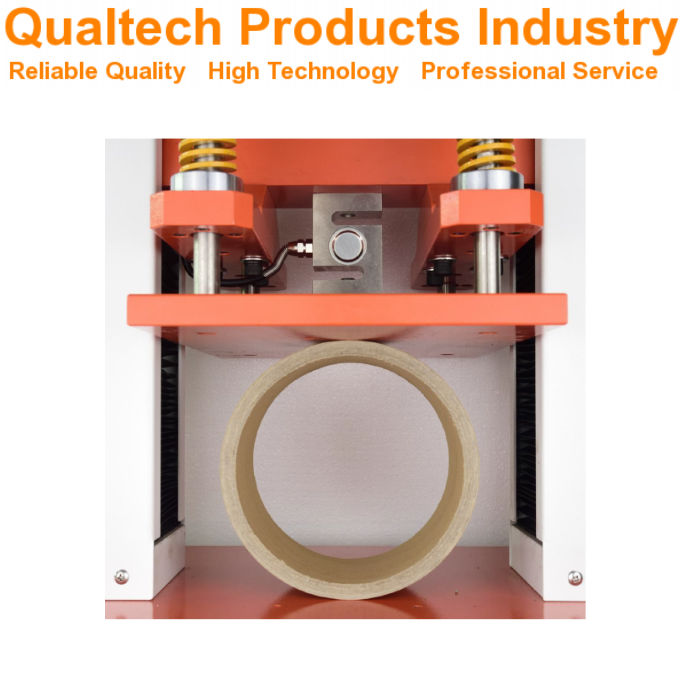

- ASTM D2412 (Standard Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading)
- ISO 2872 (Packaging — Complete, filled transport packages — Compression test)
- ISO 2874 (Packaging — Complete, filled transport packages — Stacking test using compression tester)
- ISO 12048 (Packaging — Complete, filled transport packages — Compression and stacking tests using a compression tester)
Pipe Compression Characteristics Tester - Features:
- Newest Technology
- Large Color Touchscreen Display
- Intuitive Menu Navigation
- Automatic Pipe Compressive Strength Test
- Automatic Pipe Compression Test
- Automatic Box Compression Test
- Automatic Parallel Platen Load Test
- Advanced Precision Mechanics
- Automatic Platen Zero Positioning
- Conveniently Preset Test Programs
- Compression Speed Selection
- Automatic Test Data Memory
- Extensive Compression Range
- Customized Compression Test Range available
- Automatic Calibration
- Integrated Test Data Memory
- Easy Sample Mount
- User-friendly Application
- User-friendly Sample Handling
- Integrated Mini-Printer
- Optional seamless PC-Connectivity & PC Software
- High Accuracy & High Precision
- Integrated Safety Features
- Ergonomic Design & Reliable Performance
- Engineered in accordance with international test standards including ASTM D642, ASTM D2412,
ISO 2872, ISO 2874, ISO 12048
Cardboard Roll Compression Tester – Specifications:
| Model | QPI-CFT3800 | QPI-CFT6800 |
|---|---|---|
| Newest Microchip Technology | Yes | Yes |
| Display | Large LCD Display | Large Color Touchscreen Display |
| Comfortable Softtouch Buttons | Yes | Yes |
| Display Resolution | 0.01N | 0.01N |
| Measuring Range | 0 - 5000 N | 0 - 5000 N |
| Speed | 55 mm/min | 55 mm/min |
| Measurement Units | N, Lbf, kgf | N, Lbf, kgf |
| Force Range | 0.4% - 100% FS | 0.4% - 100% FS |
| Platen Accuracy | ≤1mm | ≤1mm |
| Accuracy | ≤1mm | ≤1mm |
| Max Sample Height | 400mm | 400mm |
| Sample Area | 600mm x 600mm | 600mm x 600mm |
| User-friendly Application | Test Values & Test Curves with backlight | Test Values & Test Curves with backlight |
| User-friendly Sample Handling | Yes | Yes |
| Integrated Memory | Yes | Yes |
| Integrated Mini Printer | Integrated Thermo Printer | Integrated Thermo Printer |
| High Accuracy & High Precision | Yes | Yes |
| Ergonomic Design | Yes | Yes |
| Reliable Performance & Longevity | Yes | Yes |
| Engineered in accordance with international test standards including ASTM D642, ASTM D2412, ISO 2872, ISO 2874, ISO 12048 |
||
Compressive Strength Parallel-Plate Loading Tester – Included items:
- Automatic Paper & Cardboard & PVC Compression Tester
- Wide range of Accessories
- Quality Certificate
- Carefully Calibrated
- Calibration Certificate
- User manual
- Extended Warranty
- Lifetime Support
