Product Description:

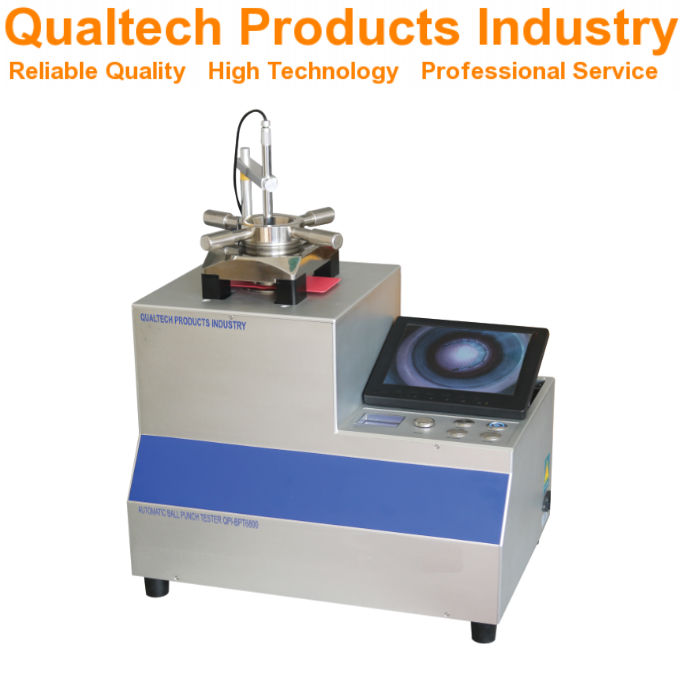

Qualtech Products Industry Ball Punch Tester is an advanced Cupping Tester to perform a Ball Punch Test and Cupping Test to instantly determine the performance and crack resistance of paint and coatings.

This Automatic Cupping Tester measures the elongation and the deformation of paint and coatings applied onto a substrate.

The Ball Punch Test Method is often used in combination with the evaluation of the performance of protective coatings.

To perform a Ball Punch Test the coated sample is mounted into the sample holder.  The maximum width of the sample can reach up to 90mm. The Ball Punch Test is completed automatically at the touch of a button.

The Ball Punch Test results are presented on the large Color Touchscreen Display and can be observed with the integrated Optical System or the large illuminated magnifying glass.

This advanced Automatic Cupping Tester offers the newest microchip technology combined with a large Color Touchscreen LCD Display, automatic sample test, continuously programmable Punch Distance in the range from 0.0mm - 18.0mm, Automatic Positioning System, integrated high precision sensors with an accuracy of ±0.01mm, high punch speed accuracy, integrated Optical System, a maximum sample width of 90mm, user-friendly application, user-friendly sample handling, high accuracy and high precision, ergonomic design, reliable performance and longevity.

This professional Automatic Cupping Tester is designed and engineered in accordance with international test standards including:

Automatic Ball Punch Deformation Tester - Features:

  • Newest Technology
  • Advanced & Automatic Ball Punch Deformation Test
  • Large Color Touchscreen Display
  • Integrated Optical System & Camera
  • Automatic Sample Evaluation & Electronic Sample Evaluation & Visual Sample Evaluation
  • High-Precision Electronic Ball Punch Positioning System
  • High-Precision Sensors with an accuracy of ±0.01 mm
  • Integrated Memory
  • Easy Sample Mount
  • User-friendly Application
  • User-friendly Sample Handling
  • High Accuracy & High Precision
  • Ergonomic Design
  • Reliable Performance & Longevity
  • Engineered in accordance with international test standards including ASTM E643, ISO 1529, BS 3900 E4

Automatic Ball Punch Tester – Specifications:

ModelQPI-BPT6800
Newest Microchip TechnologyYes
Large Color Touchscreen DisplayYes
Advanced & Automatic Ball Punch Deformation TestYes
Integrated Optical System & CameraYes
Sample EvaluationAutomatic Sample Evaluation
Electronic Sample Evaluation
Visual Sample Evaluation
Ball Punch Diameter20 mm, 0.8"
Measuring Range0.00 mm - 18.00 mm
Accuracy±0.01 mm
Maximum Force2500 N
High-Precision Electronic Ball Punch Positioning SystemYes
Sample Thickness0.03 mm - 1.25 mm
Maximum Sample Width90 mm
High-Precision SensorsYes
Integrated MemoryYes
Easy Sample MountYes
User-friendly Menu NavigationYes
User-friendly ApplicationYes
User-friendly Sample HandlingYes
Automatic CalibrationYes
High Accuracy & High PrecisionYes
Ergonomic DesignYes
Reliable Performance & LongevityYes
Voltage110 Volts 60Hz & 220 Volts 50Hz
Engineered in accordance with international test standards including ASTM D5440, ASTM D7138

Ball Punch Tester – Included items:

  • Advanced & Automatic Ball Punch Tester
  • Accessories
  • Quality Certificate
  • Carefully Calibrated
  • Calibration Certificate
  • User manual
  • Extended Warranty
  • Lifetime Support
