Product Description:

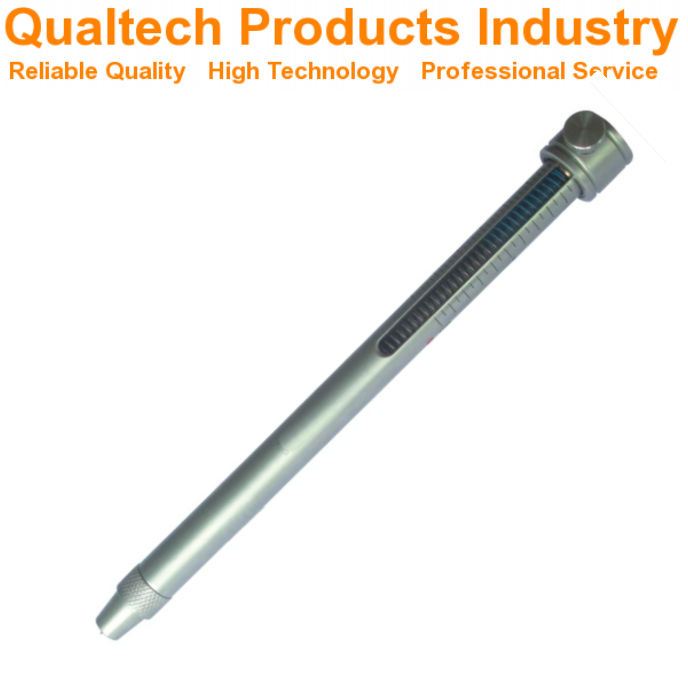

Qualtech Products Industry Dur-O-Test is a professional DIN 55656 Hardness Pen to instantly determine the Hardness, the Wear Resistance and the Scratch Resistance of Paint Films and Coatings attached to sample surfaces and substrates on the go.

This professional Hardness Pen is suitable for a wide range of samples and sample surfaces including even surfaces, convex surfaces, concave surfaces of larger and smaller size.

The Dur-O-Test is performed by adjusting the Hardness Level of the Pen-Tip with the continuously adjustable Hardness Level Dial. After selecting the Hardness Level a line with a length of around 10mm is marked on the Coating Surface or Sample Surface with the Pen-Tip at a speed of approximately 10mm/sec. This marking is visually examined for scratches or damages in the Surface Coating or the Sample Surface to instantly determine the Hardness Level of the Coating or the Sample Surface.

This precision DIN 55656 Hardness Pen is engineered to monitor and to test the Mechanical Resistance, the Surface Hardness and the Scratch Resistance of Surface Coatings for research and quality management at your laboratory and on the go.

Depending on the specific test requirements there is a variety of different test methods suggested for the measurement of the Coating Hardness and Coating Scratch Resistance. One of the most used test methods is the Hardness Test according DIN 55656, the Hardness Pen Test.

This professional DIN 55656 Dur-O-Meter is designed and engineered offering a precision engineered Spring System combined with a precision engineered Pen-Tip, a continuously adjustable Hardness Level, high quality materials, high accuracy and high precision, a user-friendly application, user-friendly sample handling, a Carrying Box, an ergonomic design, reliable performance, longevity and much more.

This professional DIN 55656 Dur-O-Test Hardness Pen is designed and engineered in accordance with international test standards including:

Dur-O-Test Hardness Pen - Features:

  • Newest Technology
  • Instant DIN 55656 Dur-O-Test
  • Continuously adjustable Spring System
  • Precision engineered Pen-Tip
  • Durable Pen-Tip made of high quality materials
  • Precision engineered and calibrated
  • User-friendly Hardness Level Adjustment
  • User-friendly Application
  • User-friendly Sample Handling
  • High Accuracy & High Precision
  • Ergonomic Design
  • Reliable Performance & Longevity
  • Engineered in accordance with international test standards including DIN 55656

Dur-O-Test Hardness Pen - Specifications:

ModelQPI-DINHP3800QPI-DINHP6800
Newest TechnologyYesYes
Instant DIN 55656 Surface Hardness TestYesYes
Continuous Hardness Level AdjustmentYesYes
Scratch Pin#1: Tungsten Carbide Pin
#2: Tungsten Carbide Pin
#3: Tungsten Carbide Pin
#4: Spring Mechanic Pin
PinØ 0.75mm Spherical BoschØ 0.75mm Spherical Bosch
Optional PinsØ 0.5mm Spherical Opel
Ø 1.0mm Spherical ISO 1518
Spring Mechanics0N - 3N
0N - 10N
0N - 20N
Reliable Spring SystemYesYes
Precision engineered Pen-TipYesYes
Durable Pen-TipYesYes
Precision engineered & carefully calibratedYesYes
Made of High Quality MaterialsYesYes
User-friendly ApplicationYesYes
User-friendly Hardness Level AdjustmentYesYes
User-friendly Sample HandlingYesYes
High Accuracy & High PrecisionYesYes
Ergonomic DesignYesYes
Reliable Performance & LongevityYesYes
Engineered in accordance with international test standards including DIN 55656, ISO 1518

DIN Hardness Pen - Available Accessories:

ModelDescription
QPI-DINHP3800075Ø 0.75mm Spherical Bosch included
QPI-DINHP6800075Ø 0.75mm Spherical Bosch included
QPI-DINHP680005Ø 0.5mm Spherical Bosch optional
QPI-DINHP680010Ø 1.0mm Spherical ISO 1518 optional
QPI-DINHP38003NSpring Mechanics 0N - 3N
QPI-DINHP380010NSpring Mechanics 0N - 10N
QPI-DINHP380020NSpring Mechanics 0N - 20N
QPI-DINHP68003NSpring Mechanics 0N - 3N
QPI-DINHP680010NSpring Mechanics 0N - 10N
QPI-DINHP680020NSpring Mechanics 0N - 20N

DIN 55656 Hardness Pen – Included items:

  • Precision Hardness Pen
  • Accessories
  • Carrying Box
  • Quality Certificate
  • Carefully Calibrated
  • Calibration Certificate
  • User manual
  • Extended Warranty
  • Lifetime Support
