Product Description:

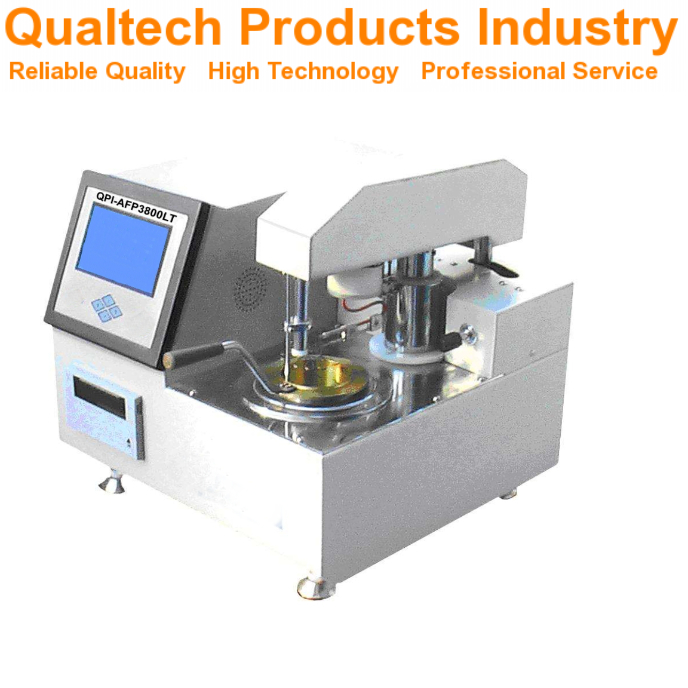

Qualtech Products Industry Low Temperature Flash Point Tester is a precision Pensky–Martens Low Temperature Open Cup Flash Point Test Instrument to determine the Flash Point of volatile samples.

The Low Temperature Flash Point is the lowest temperature at which a liquid sample vaporizes to form an ignitable mixture with air. After reaching the Flash-Point and after the ignition of the liquid sample the liquid sample and the vapor may continue to burn even without the ignition source being present or active any longer.

During the Low Temperature Open Cup Flash Point Test a cup made of Brass is filled with a liquid sample. The liquid sample inside the Brass cup is automatically mixed at a specified speed and heated at a specified temperature rate in accordance with the sample specifications and the test standard. Simultaneously, an Ignition Source is directed into the Brass cup performing ignition attempts periodically until a flash inside the Brass cup is recorded. The flash inside the Brass cup corresponds with the Low Temperature Flash-Point Temperature which automatically presented on the large display of the Pensky–Martens Open Cup Low Temperatue Flash Point Tester.

The main advantage of the Low Temperature Open Cup Flash Point Tester is the equilibrium between the liquid sample and the vapor above the liquid sample inside the Brass cup established by the lid resulting in a closed environment inside the Brass cup which best indicates the Lower Flammable Limit of a sample during the sample test ideal to determine and to characterize the fire hazards of flammable liquid samples or combustible liquid specimen.

This professional Automatic Low Temperature Oopen Cup Flash Point Tester offers the newest microchip technology combined with a large LCD Touchscreen Display, an advanced Ignition System, high-precision Temperature Sensors, Automatic Calibration, user-friendly application, user-friendly sample handling, integrated Safety Features, integrated Direct Printing, an ergonomic design, reliable performance, longevity and much more.

This Open Cup Low Temperature Flash Point Tester is suitable for a wide range of samples including oil, liquid samples, liquid samples with two phases, solid suspensions and relates samples.

This professional Open Cup Low Temperature Flash Point Tester is designed & engineered in accordance with international test standards including:

Low Temperature Open Cup Flash Point Tester - Features:

  • Newest Microchip Technology
  • Large Color Touchscreen Display
  • Automatic Low Temperature Flash Point Measurement
  • Precision engineered Brass Cup
  • High-Precision Sample Temperature Sensors
  • Advanced Ignition System
  • Automatic Calibration
  • Integrated Direct Printing
  • User-friendly Application
  • User-friendly Sample Handling
  • High Accuracy & High Precision
  • Integrated Safety Features
  • Ergonomic Design & Reliable Performance
  • Engineered in accordance with international test standards including ASTM D93, ASTM D3278, ASTM D3828, ASTM D6450, ISO 2719, DIN 51758

Low Temperature Flash Point Tester – Specifications:

ModelQPI-AFP3800LTO
Test MesthodAutomatic Open Cup Flash Point Test
Temperature Range-20°C - 100°C
Accuracy±2°C
Temperature Resolution0.1°C
Heating Performance Adjustable1 - 12°C/min
Constant Speed Mixer100 RPM
Brass Cup Max Sample Volume70 ml
User-friendly Sample HandlingYes
Integrated Safety FeaturesYes
High Accuracy & High PrecisionYes
Ergonomic DesignYes
Reliable Performance & LongevityYes
Voltage110V 60Hz and 220V 50Hz
Engineered in accordance with international test standards including ASTM D93, ASTM D3278, ASTM D3828, ASTM D6450, ISO 2719, DIN 51758

Low Temperature Open Cup Flash Point Tester – Included items:

  • Low Temperature Open Cup Flash Point Tester
  • Accessories
  • Quality Certificate
  • Carefully Calibrated
  • Calibration Certificate
  • User manual
  • Extended Warranty
  • Lifetime Support
