Product Description:

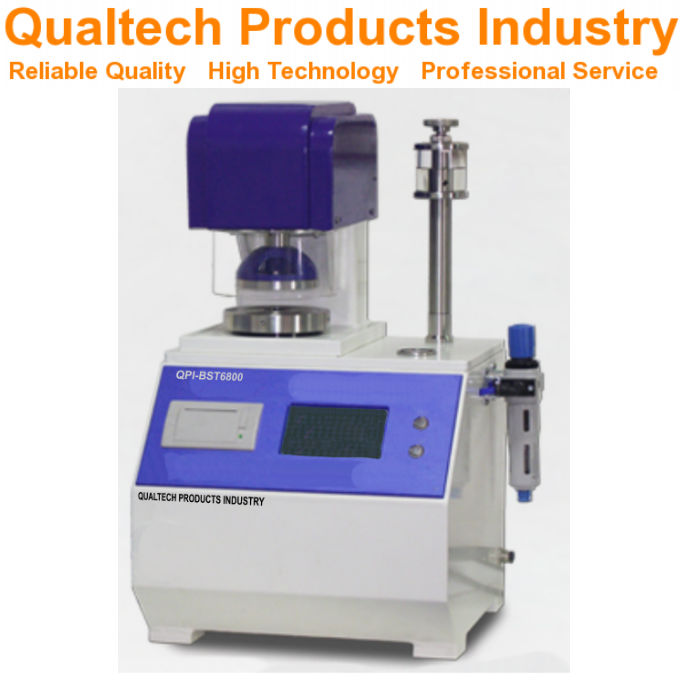

Qualtech Products Industry Burst Strength Tester is an advanced Cardboard Burst Tester to instantly test the Bursting Strength of Corrugated Paperboard, Cardboard and related sample materials at the touch of a button.

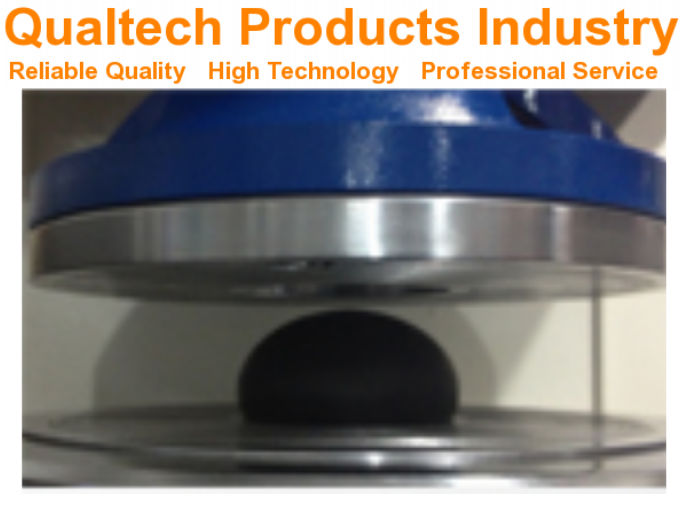

The Corrugated Paperboard Test is performed by mounting the sample between two ring-shaped sample clamps. A rubber diaphragm is slowly and automatically inflated and expands towards the substrate applying slowly increasing physical stress on the sample until the substrate ruptures.

The Cardboard Pop Test is performed on each side of the sample to offer test results with a very high accuracy. The Burst Strength Result is calculated as the average means of both sides of the Pop Test.

The Corrugated Paperboard Bursting Strength Test is a composite strength property and it correlates with the amount of fiber and additives present in the sample as well as the composition, the beating and the refining of the sample.

The Burst Strength Test is an efficient and reliable paper quality test suitable for a wide range of paper products including paper, paperboard, corrugated cardboard, combined container boards and related sample materials.

This professional Cardboard Burst Strength Tester offers the newest microchip technology combined with a large Color Touchscreen Display, Automatic Calibration, Automatic Low Pressure Burst Strength for Paper Samples, Automatic High Pressure Burst Strength for Paperboard and Corrugated Cardboard Samples, user-friendly programming, user-friendly application, user-friendly sample handling, integrated Mini-Printer, On-Display Graphic Test Curve Presentation, Test Data Statistics, and ergonomic design, reliable performance, longevity and much more.

This professional Corrugated Paperboard Burst Tester is designed and engineered in accordance with international test standards including:

Corrugated Paperboard Burst Tester - Features:

  • Newest Technology
  • Large Color Touchscreen Display
  • On-Display Compression Curve Graphic Presentation
  • Automatic Pop Test for Paper, Paperboard, Textiles and related samples
  • Automatic Low Pressure Burst Test for Paper
  • Automatic High Pressure Burst Test for Paperboard & Corrugated Cardboard
  • High-Precision Pressure Sensors
  • High-Precision Mechanics
  • Automatic Calibration
  • Integrated Test Data Memory
  • Easy Sample Mount
  • User-friendly Application
  • User-friendly Sample Handling
  • Integrated Mini-Pinter
  • Wide range of available accessories
  • High Accuracy & High Precision
  • Ergonomic Design
  • Reliable Performance & Longevity
  • Engineered in accordance with international test standards including ASTM D774, ISO 2758, ISO 2759,
    TAPPI T403

Cardboard Burst Strength Tester – Specifications:

ModelQPI-BST6800
Newest Mircrochip TechnologyYes
Large Color Touchscreen DisplayYes
Automatic Pop Test for Paper, Paperboard, Textiles and related samplesYes
Automatic Low Pressure Burst Test for PaperYes
Automatic High Pressure Burst Test for Paperboard & Corrugated CardboardYes
On-Display Burst Strength Graphic Curve PresentationYes
Measuring Range
Low Pressure
Suitable for Paper Samples
5 - 1400 kPa
Measuring Range
High Pressure
Suitable for Board Samples
150 - 5600 kPa
Compression Speed
Low Pressure
95 ±5 mm/ml
Compression Speed
High Pressure
175 ±5 mm/ml
Sample Clamp Force0 - 1200 kpa continuously adjustable
Accuracy±0.01 kpa
±0.5%
Sample Test Unitskpa
kg/cm3
lbf/in2
Upper Sample Holder
Low Pressure Test
30.5 ±0.1 mm
Lower Sample Holder
Low Pressure Test
33.1 ±0.1 mm
Upper Sample Holder
High Pressure Test
31.5 ±0.1 mm
Lower Sample Holder
High Pressure Test
31.1 ±0.1 mm
Automatic CalibrationYes
High-Precision Pressure SensorsYes
High-Precision MechanicsYes
Integrated Test Data MemoryYes
Easy Sample MountYes
User-friendly ApplicationYes
User-friendly Sample Handling
Yes
Integrated Mini-PinterYes
Wide range of available accessoriesYes
High Accuracy & High PrecisionYes
Integrated Test Data MaemoryYes
User-friendly ProgrammingYes
Ergonomic DesignYes
Reliable Performance & LongevityYes
Engineered in accordance with international test standards including ASTM D774, ISO 2758, ISO 2759

Paperboard Pop Tester – Included items:

  • Automatic Cardboard Burst Strength Tester
  • Accessories
  • Quality Certificate
  • Carefully Calibrated
  • Calibration Certificate
  • User manual
  • Extended Warranty
  • Lifetime Support
