Product Description:

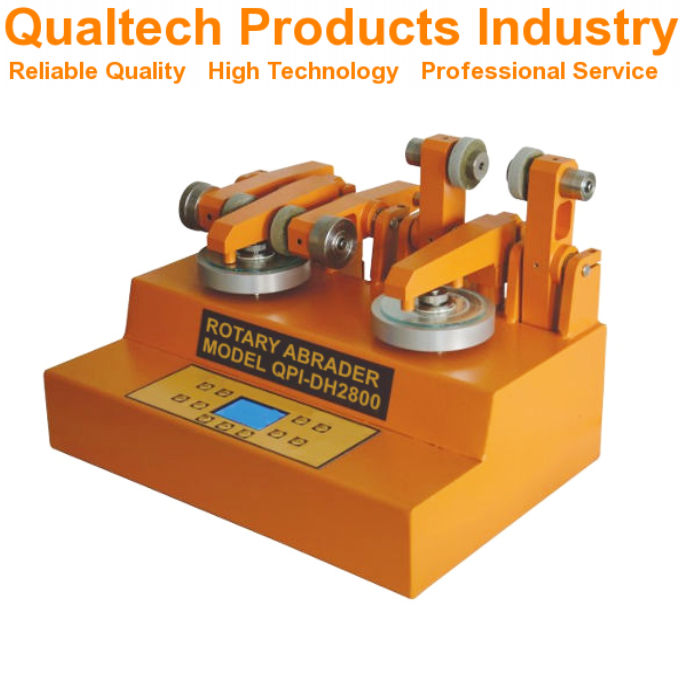

Qualtech Products Industry Dual Platform Abrasion Tester is a precision Rotary Abrasion Tester to perform automatic Accelerated Wear Tests on samples and sample surfaces by abrasion to instantly determine the resistance to dry abrasion at the touch of a button.

This professional Dual Rotary Rotary Abrasion Tester is suitable for a wide range of samples, sample surfaces, surface coatings and protective surface coatings including solid samples, coated surfaces, protective lacquers, protective surface coatings, electroplated surfaces, plastic-coated surfaces, textiles, leather, rubber, linoleum, laminated floor tiles, wood panels, ceramic tiles, metals and many more.

The Test Method for Abrasion Resistance is performed by mounting a sample onto the Sample Platform. The Sample Platform is a turntable which rotates the sample at a specified speed. During the rotation the sample is in direct contact with two specified Abrasive Wheels with a specified Test Load to determine the resistance to wear of the sample. The Abrasive Wear Action is achieved with the two specified Abrasive Wheels rotating in opposite directions set and kept in motion by a the rotating Sample Platform. The Abrading Wheels travel on the sample surface following a horizontal axis displaced tangentially from the axis of the test material which results in a sliding action. An exclusive feature of this Test Method for Abrasion Resistance is the “X” Pattern of Abrasion established by the rub-wear action of the Abrasive Wheels.
The rotary abrasion wear pattern formed on the sample surface is that of two intersecting areas or a slightly curved herringbone configuration from the outside to the center and from the center to the outside. During the Abrasion Test the sample surface is subjected to wear and abrasion and the material surface is abraded at all angles of grain or weave.

This professional automatic Dual Platform Rotary Abrasion Tester is designed and engineered offering the newest microchip technology combined with a large Color LCD Display, comfortable Sofftouch Buttons, advanced Dual Sample Turntables, Dual Sample Test System for side-by-side sample testing, Speed Control, advanced Constant Speed Technology, automatic Rotary Abrasion Test Programs, a wide range of available standardized and precision-engineered Abrasion Heads, a wide range of standardized and carefully calibrated precision-engineered Test Loads, optional custom engineered Test Loads, an easy Sample Mount System, easy Abrasion Head Swap System, easy Test Load Swap System, advanced Platform Constant Speed Technology, Automatic Calibration, included Vacuum System, user-friendly Menu Navigation, user-friendly application, user-friendly sample handling, high accuracy and high precision, an ergonomic design, reliable performance, longevity and much more.

The large Color LCD Display presents a wide range of test data and test details for an advanced and automatic sample Abrasion Resistance Test Analysis including the Sample Platform Speed, the number of completed Abrasion Cycles, the number of preset Target Abrasion Cycles and much more.

This professional Dual Rotary Turntable Abrasion Tester is designed and engineered in accordance with international test standards including:

Dual Platform Rotary Abrasion Tester - Features:

  • Newest Microchip Technology
  • Large Color LCD Display
  • Instant Abrasion Resistance Test
  • Dual Platform System for simultaneous testing of up to two samples side-by-side
  • Automatic Calibration
  • Wide range of standardized and precision-engineered Abrasion Heads
  • Optional custom engineered Abrasion Heads available
  • Wide range of calibrated Test Loads
  • Counterbalance Test Loads 1g, 2g, 5g, 10g, 20g
  • Easy Sample Mount System
  • Included Solid Sample Holder
  • Optional Textile Sample Holder
  • Easy Abrasion Head Swap System
  • Easy Test Load Swap System
  • Advanced Sample Platform Constant Speed Technology
  • Extensive Sample Test Monitoring with on screen test parameters
  • User-friendly Menu Navigation
  • User-friendly Application
  • User-friendly Sample Handling
  • High Accuracy & High Precision
  • Ergonomic Design
  • Reliable Performance & Longevity
  • Engineered in accordance with international test standards including ASTM C241, ASTM C501, ASTM D1044, ASTM C1353, ASTM D3884, ASTM D3389, ASTM D4060, ASTM D5034, ASTM D5035, ASTM D6037, ASTM D7255, ASTM F362, ASTM F510, ASTM F1478, ASTM F1978, ISO 3537, ISO 4586, ISO 5470, ISO 7784, ISO 7784, ISO 9352, ISO 10074, ISO 14656, ISO 24338, DIN 52347, DIN 53109, DIN 53754, DIN 53799, DIN 68861, AS/NZS 1580.403.2, AS/NZS 4266.2, BS 5599, ENV 13696, FORD BN108-02,  GM 9515P, SAE J 1530, SAE J 1847, SAE J 365, SAE J 948, EN 13329, EN 13523-16, EN 14323, EN14327, EN14354, EN14431, EN 14688, EN 14864, EN 1504-2, EN 438-2, EN 660-2.

Dual Turntable Rotary Abrasion Tester - Specifications:

ModelQPI-DH1800
Newest Microchip TechnologyYes
Large Color LCD DisplayYes
Comfortable Softtouch ButtonsYes
Instant Automatic Abrasion Resistance TestYes
Dual Sample Platform SystemYes
Simultaneously test two samples side-by-sideYes
Sample Speed60 RPM, 72 RPM
Carefully Calibrated Test Loads500g, 750g, 1000g
Calibrated Counterbalance Test Loads1g, 2g, 5g, 10g, 20g
Wide range of standardized and precision-engineered Abrasion HeadsYes
Optional custom engineered Abrasion Heads availableYes
Easy Sample Mount SystemYes
Included Solid Sample HolderYes
Optional Textile Sample HolderYes
Easy Abrasion Head Swap SystemYes
Easy Test Load Swap SystemYes
Advanced Sample Platform Constant Speed TechnologyYes
Extensive Sample Test Monitoring with on screen Test ParametersYes
User-friendly Menu NavigationYes
User-friendly ApplicationYes
User-friendly Sample HandlingYes
High Accuracy & High PrecisionYes
Ergonomic DesignYes
Reliable Performance & LongevityYes
Voltage100VAC - 240VAC 50Hz/60Hz
Engineered in accordance with international test standards including ASTM D2486, ASTM D3450, ASTM D4213, ASTM D4752, ASTM D4828, ISO 11998, DIN 53778, BS 3900-F17, MIL-STD-1334 B, MIL-C-3004, MIL-C-46057, MIL-E-11237, MIL-P-15422 C

Dual Platform Rotary Abrasion Tester – Included items:

  • Automatic Dual Platform Rotary Abrasion Tester
  • Included Abrasion Heads of your choosing 4PC
  • Wide Range of Test Loads
  • Counterbalance Test Loads
  • Vacuum System
  • Glass Panels
  • Sample Mount
  • Refacing Disks
  • Accessories
  • Quality Certificate
  • Carefully Calibrated
  • Calibration Certificate
  • User manual
  • Extended Warranty
