Product Description:

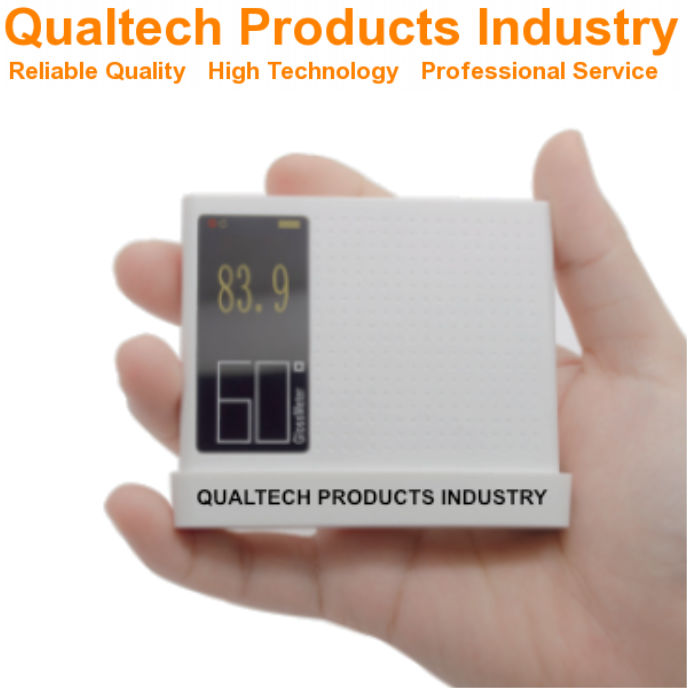

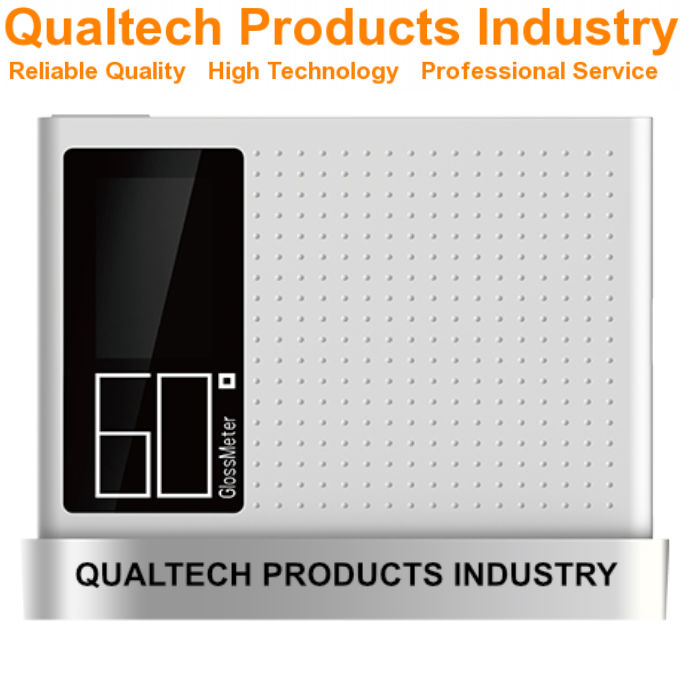

Qualtech Products Industry Mini Glossmeter is an advanced precision Micro Sized Glossmeter engineered for instant and continuous precision Gloss Measurements with a size that perfectly fit into your palm at the touch of a button.
This professional Pocket Size Glossmeter offers the newest microchip technology combined with a large LCD Display, high-precision Gloss Sensor, performs high-precision Gloss Measurements at an angle of 60°, weights only 120g, completes Gloss Measurements in less than 1 second, includes an extensive Battery Life with up to 10,000 Gloss Measurements on a single charge, performs Automatic Calibration to ensure High Accuracy and High Precision, Instant Single Gloss Measurement Mode, Hands-Free Continuous Gloss Measurement Mode, durable Design and High-Quality Materials, user-friendly Application, user-friendly Sample Handling, intuitive Menu Navigation, ergonomic Design, reliable Performance and much more.
This precision Miniature Glossmeter is easy and very convenient to use at your laboratory and in the field.
This advanced Card Size Glossmeter offers high precision and performs instant and continuous automatic real-time Gloss Measurements at an Angle of 60°.
This professional Micro Size Glossmeter is designed and engineered in accordance with international test standards including:
- ASTM C584 (Standard Test Method for Specular Gloss of Glazed Ceramic Whitewares and Related Products)
- ASTM D523 (Standard Test Method for Specular Gloss)
- ASTM D2457 (Standard Test Method for Specular Gloss of Plastic Films and Solid Plastics)
- DIN EN ISO 2813 (Paints and varnishes — Determination of gloss value at 20 degrees, 60 degrees and 85 degrees)
- EN ISO 7668 (Anodizing of aluminum and its alloys — Measurement of specular reflectance and specular gloss of anodic oxidation coatings at angles of 20 degrees, 45 degrees, 60 degrees or 85 degrees)
- BS 3900-D5 (Methods of test for paints. Optical tests on paint films. Measurement of specular gloss of non-metallic paint films at 20°, 60° and 85°)
- BS EN ISO 2813:2000 (Paints and varnishes. Measurement of specular gloss of non-metallic paint films at 20°, 60° and 85°)
- DIN 67530
- MFT 30064
- AS 1580
Pocket Glossmeter 60° – Features:
- Newest Microchip Technology
- Large LCD Display
- Advanced Gloss Measurement
- High-precision Gloss Sensor
- Performs high-precision Gloss Measurements at an angle of 60°
- Weights only 120g
- Size of a small card & fits perfectly in the palm of your hand
- Completes Gloss Measurements in less than 1 second
- Extensive Battery Life with up to 10,000 Gloss Measurements on a single charge
- Automatic Calibration to ensure High Accuracy & High Precision
- Instant Single Gloss Measurement Mode
- Hands-Free Continuous Gloss Measurement Mode
- Durable Design
- High-Quality Materials
- User-friendly Application
- User-friendly Sample Handling
- Intuitive Menu Navigation
- Instant Gloss Measurements
- Continuous Gloss Measurements
- Real-Time Gloss Measurements
- Advanced Light Source Technology
- High Accuracy & High Repeatability
- Ergonomic Design & Reliable Performance
- Engineered in accordance with international test standards including ASTM C584, ASTM D523, ASTM D2457, DIN EN ISO 2813, EN ISO 7668, BS 3900-D5, BS EN ISO 2813:2000, DIN 67530, MFT 30064, AS 1580
Micro Size Glossmeter 60° – Specifications:
| Model | QPI-MCGM1800 | QPI-MCGM2800 | QPI-MCGM3800 |
|---|---|---|---|
| Newest Microchip Technology | Yes | Yes | Yes |
| Large LCD display with backlight | Yes | Yes | Yes |
| Measurement Range | 0 - 200 GU | 0 - 1200 GU | 0 - 2000 GU |
| Display Resolution | 0.1 GU | 0.1 GU | 0.1 GU |
| Accuracy | 0GU - 100GU: ±0.1GU 100GU - 2000GU: ±1GU | 0GU - 100GU: ±0.1GU 100GU - 2000GU: ±1GU | 0GU - 100GU: ±0.1GU 100GU - 2000GU: ±1GU |
| Repeatability | ±0.1% | ±0.1% | ±0.1% |
| Sensor Size | 22mm x 6mm | 22mm x 6mm | 22mm x 6mm |
| Automatic Calibration | Yes | Yes | Yes |
| User-friendly Application | Yes | Yes | Yes |
| User-friendly Sample Handling | Yes | Yes | Yes |
| Intuitive Menu Navigation | Yes | Yes | Yes |
| Extensive Battery Life | Up to 3000 Gloss Measurements on a single charge | Up to 10,000 Gloss Measurements on a single charge | Up to 20,000 Gloss Measurements on a single charge |
| Advanced Portability & Light-Weight | Yes | Yes | Yes |
| Newest Sensor & Light Source Technology | Yes | Yes | Yes |
| Weight | 100g | 120g | 120g |
| Connection | USB | USB & Bluetooth | USB & Bluetooth |
| Ergonomic Design & Reliable Performance | Yes | Yes | Yes |
| Voltage | 100VAC - 240VAC 50Hz/60Hz | 100VAC - 240VAC 50Hz/60Hz | 100VAC - 240VAC 50Hz/60Hz |
| Engineered in accordance with International Test Standards including ASTM C584, ASTM D523, ASTM D2457, DIN EN ISO 2813, EN ISO 7668, BS 3900-D5, BS EN ISO 2813:2000, DIN 67530, MFT 30064, AS 1580 | |||
Card Size High-Precision Glossmeter – Included items:
- Card Size High-Precision Glossmeter
- Carrying Box
- Carefully Calibrated
- Calibration Certificate
- Quality Certificate
- Extended Warranty
- Lifetime Support
- User Manual
