Descrizione del prodotto:

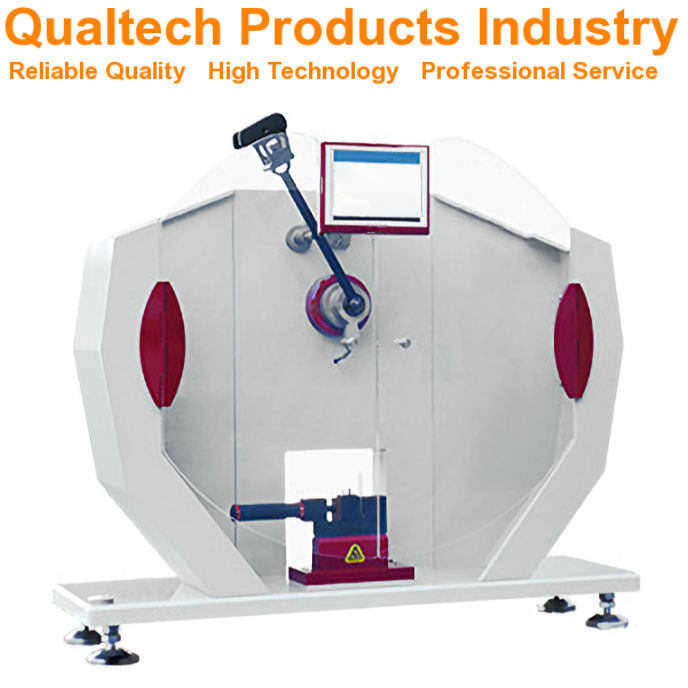

Industria dei prodotti Qualtech Tester di impatto Charpy è un professionista Charpy Pendulum Impact Test Equipment to instantly measure and evaluate the Resistenza all'impatto di Plastic Samples e PVC Samples including plastic surfaces, plastic panels, plastic plates, plastic pipes and related sample materials at the touch of a button.
Il Charpy Impact Test uses a swinging Pendulum Arm which pivots and is lifted to a specified height. The pivoting Pendulum Arm is released and impacts on a specified sample to determine the Forza d'impatto. The energy which is absorbed by the sample is calculated from the specified height the Pendulum Arm is released. The Charpy Impact Test e il Izod Impact Test are similar test methods which differ primarily in the configuration of the Sample Holder System.
Il Charpy Impact Test uses a Cantilevered Beam Installation e il Izod Impact Test relies on a Notched Sample Installation per misurare il Energia d'impatto e il Notch Sensitivity. Il Izod Impact Test releases a higher Forza d'impatto compared to the Charpy Impact Test.
Questo professionista Tester di impatto Charpy is designed and engineered offering the newest microchip technology combined with a large Color Touchscreen Display, real-time test monitoring and Pendulum on-screen Presentation, advanced precision engineered Pendulum, newest Pendulum Technology to ensure vibration-free testing with low resistance, automatic measurement of the Pendulum Swing Time for increased accuracy, Automatic Test Programs and Manual Test Programs for partial fracture and complete fracture offering extensive flexibility and intuitive Impact Testing, advanced precision engineered Impact Head with Quick Release System for fast and convenient replacing of the Impact Head, advanced Pendulum Auto-Stop System to ensure an efficient and safe test application, high-precision Camera for highly accurate and automatic measurement of the Pendolo e il Forza d'impatto, user-friendly Application, user-friendly Sample Handling, user-friendly Menu Navigation, High Accuracy & High Precision, reliable Performance, ergonomic Design and much more.
This professional Charpy Pendulum Impact Tester is designed and engineered in accordance with international test standards including:
Tester di impatto a pendolo Charpy - Applicazione:
Il Tester di impatto Charpy è un professionista Charpy Pendulum Impact Test Equipment to instantly measure and evaluate the Resistenza all'impatto di Plastic Samples e PVC Samples including plastic surfaces, plastic panels, plastic plates, plastic pipes and related sample materials at the touch of a button.
Il Charpy Impact Test uses a swinging Pendulum Arm which pivots and is lifted to a specified height. The pivoting Pendulum Arm is released and impacts on a specified sample to determine the Forza d'impatto. The energy which is absorbed by the sample is calculated from the specified height the Pendulum Arm is released. The Charpy Impact Test e il Izod Impact Test are similar test methods which differ primarily in the configuration of the Sample Holder System.
Il Charpy Impact Test uses a Cantilevered Beam Installation e il Izod Impact Test relies on a Notched Sample Installation per misurare il Energia d'impatto e il Notch Sensitivity. Il Izod Impact Test releases a higher Forza d'impatto compared to the Charpy Impact Test.
Tester di impatto Charpy - Caratteristiche:
- La più recente tecnologia di microchip
- Ampio display touchscreen a colori
- Real-Time Test Monitoring & Pendulum on-screen Presentation
- Advanced precision engineered Pendulum
- Newest Pendulum Technology to ensure vibration-free testing with low resistance
- Automatic measurement of the Pendulum Swing Time for increased accuracy
- Automatic Test Programs & Manual Test Programs for Partial Fracture & Complete Fracture
- Flexibility & intuitive Impact Testing
- Advanced precision engineered Impact Head
- Impact Head Quick Release System for fast & convenient replacing of the Impact Head
- Advanced Pendulum Auto-Stop System to ensure an efficient & safe test application
- High-precision Camera for highly accurate & automatic measurement of the Pendulum & the Impact Strength
- Applicazione facile da usare
- Gestione dei campioni facile da usare
- Navigazione del menu intuitiva
- Alta precisione e alta precisione
- Design ergonomico e prestazioni affidabili
- Engineered in accordance with international test standards including ASTM D6110-18, ISO 179
Tester di impatto Charpy - Specifiche:
| Modello | QPI-PIT6800C |
|---|---|
| La più recente tecnologia di microchip | sì |
| Ampio touchscreen a colori | sì |
| Forza d'impatto | Charpy: 0.5J, 1.0J, 2.0J, 4.0J, 5.0J Optional 2.75J, 5.5J |
| Risoluzione del display | 0.01J |
| Charpy Impact Speed | 2.9 m/s |
| Charpy Pendulum Radius | 2 ±0.5 mm |
| Charpy Impact Head Angle | 30° ±1° |
| Charpy Notch A | 45° ±1° R 0.25 ±0.05 mm |
| Charpy Notch B | 45° ±1° R 1 ±0.05 mm |
| Charpy Notch C | 45° ±1° R 0.10 ±0.02 mm |
| Real-Time Test Monitoring & Pendulum on-screen Presentation | sì |
| Advanced precision engineered Pendulum | sì |
| Newest Pendulum Technology to ensure vibration-free testing with low resistance | sì |
| Automatic measurement of the Pendulum Swing Time for increased accuracy | sì |
| Automatic Test Programs & Manual Test Programs for Partial Fracture & Complete Fracture | sì |
| Flexibility & intuitive Impact Testing | sì |
| Advanced precision engineered Impact Head | sì |
| Impact Head Quick Release System for fast & convenient replacing of the Impact Head | sì |
| Advanced Pendulum Auto-Stop System to ensure an efficient & safe test application | sì |
| High-precision Camera for highly accurate & automatic measurement of the Pendulum & the Impact Strength | sì |
| Applicazione facile da usare | sì |
| Gestione dei campioni facile da usare | sì |
| User-friendly Impact Head Switch & Swap Technology | sì |
| Alta precisione e alta precisione | sì |
| Realizzato con materiali di alta qualità | sì |
| Design ergonomico e prestazioni affidabili | sì |
| Voltaggio | 100VAC - 240VAC 50Hz/60Hz |
| Engineered in accordance with international test standards including ASTM D256, ASTM D6110-18, ISO 179, ISO 180 | |
Tester di impatto a pendolo Charpy – Articoli inclusi:
- Tester di impatto a pendolo Charpy
- Accessori
- Accuratamente calibrato
- Certificato di calibrazione
- Certificato di qualità
- Manuale d'uso
- Garanzia estesa
