Descrizione del prodotto:

Industria dei prodotti Qualtech Pressa per prove di inchiostro è un professionista Sistema automatico di prova dell'inchiostro per abbinare istantaneamente i colori Stampa offset in tutte le fasi dal design iniziale al prodotto finale stampato con la semplice pressione di un pulsante.

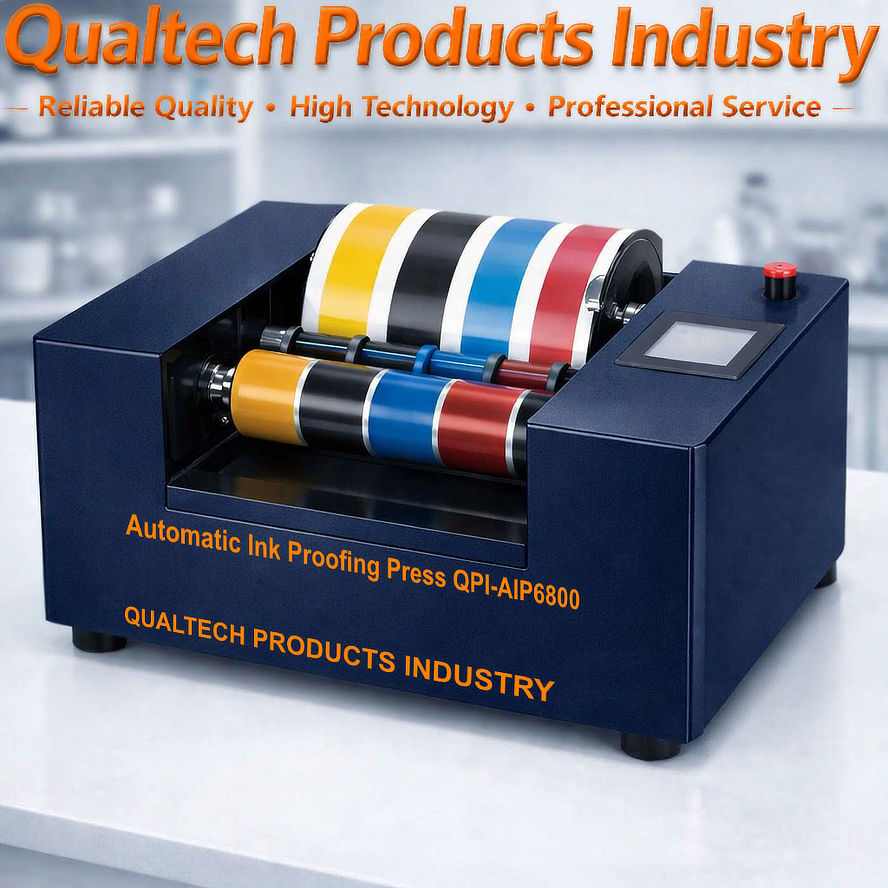

Questo professionista Automatic Four Color Ink Proofing Press is a High‑Precision, Multi‑Mode Ink Evaluation Press engineered for Offset, Flexo Formulations and & UV Inks.

Questo professionista Automatic Four‑Color Ink Proofing Press offers the newest technology combined with a large Color Touchscreen Display, comfortable Softtouch Buttons, programmable Ink Setting Time, Speed Control, Automatic Ink Proofing Pressure Adjustment via Softtouch Buttons, suitable for wide rage of Samples Thicknesses, wide range of standardized and custom engineered Printing Rollers with up to five sections including four different colors and UV Ink, Automatic Self-Cleaning Program with adjustable Self-Cleaning Speed, user-friendly application, user-friendly programming, user-friendly sample handling, user-friendly menu navigation, high accuracy and high precision, ergonomic design, reliable performance and much more.

Questo avanzato Automatic Four‑Color Ink Proofing Press is a fully automated, microprocessor controlled ink testing system designed for laboratories, R&D departments, and professional printing environments. With its advanced multi‑mode ink distribution system, high‑accuracy pressure control, and optional UV ink roller, this Pressa automatica per prove di inchiostro delivers consistent, repeatable, and production‑realistic ink proofs across a wide range of substrates.

Key Features include:

• Advanced Microcomputer Control
  High‑resolution LCD interface displays all operating parameters clearly and intuitively, enabling precise adjustments and user‑friendly operation.
• Three Intelligent Inking Modes
  Built‑in multi‑ink modes allow personalized configuration for different workflows, ink types, and special testing conditions.
• Programmable Oscillation & Contact Modes
  Set oscillation timing (1–200 seconds), speed levels (high/medium/low), and contact modes (intermittent, fixed, or positioning) for maximum flexibility in ink distribution.
• Soft‑Start Anti‑Mist System
  Adjustable non‑oscillation soft‑start function reduces uneven ink spread and prevents ink misting during high‑speed operation.
• High‑Precision Synchronous Motor
  Real‑time digital pressure display ensures exact color‑strip pressure control. One press of a button automatically adjusts to the required inking pressure.
• Wide Pressure Range for All Film Types
  Suitable for all thin‑film materials with a broad pressure adjustment range (‑1 to 40 / +1 to 80 mm), ensuring accurate and repeatable ink transfer.
• Preset Inking Speeds
  Three selectable speed levels allow optimized ink distribution for different ink systems and testing requirements.
• Customizable Multi‑Color Ink Rollers
  Optional 2‑color, 3‑color, or 4‑color segmented rollers provide precise visual analysis of ink balance, density, and formulation accuracy.
• Multiple Color‑Strip Formats
  Supports 45×200 mm, 106×200 mm, and mixed‑format color strips for flexible proofing and comparative analysis.
• Compatible with Offset & UV Inks
  Use standard offset ink rollers or the optional UV ink roller for full UV‑ink compatibility across all major substrates: newsprint, coated paper, art paper, kraft, gold card, silver card, and more.
• Efficient Cleaning Modes
  Independent metal‑roller oscillation or combined roller cleaning modes (clean‑off / clean‑on) with adjustable speeds (low/medium/high) for fast, safe, and ergonomic maintenance.

Questo esperto Pressa per prove di inchiostro is engineered for Ink manufacturers, Printing R&D labs, Offset Formulations and UV Inks, Quality control departments, Technical universities and training centers.

Questo Automatic Four Color Ink Proofing Press delivers repeatable, production‑grade ink proofs, enabling engineers and professionals to evaluate ink behavior, color strength, gloss, drying, and compatibility with unmatched precision.

Questa pressa professionale per prove di inchiostro automatica è progettata e progettata in conformità con gli standard di prova internazionali.

• ASTM (American Society for Testing and Materials)
• ASTM D823 – Producing uniform films of coatings for testing
• ASTM D2457 – Gloss of plastic films
• ASTM D3022 – Ink rub resistance
• ASTM D5895 – Drying/curing of printing inks
• ASTM D4828 – Cleanability of coatings
• ASTM D7255 – Abrasion resistance of printed materials
• ISO (International Organization for Standardization)
• ISO 2834‑1 / 2834‑2 / 2834‑3 – Preparation of test prints for ink testing
• ISO 2846 – Color and transparency of inks
• ISO 12647 series – Process control for color printing
• ISO 5631 – Colorimetry of paper
• ISO 3783 – Ink rub testing
